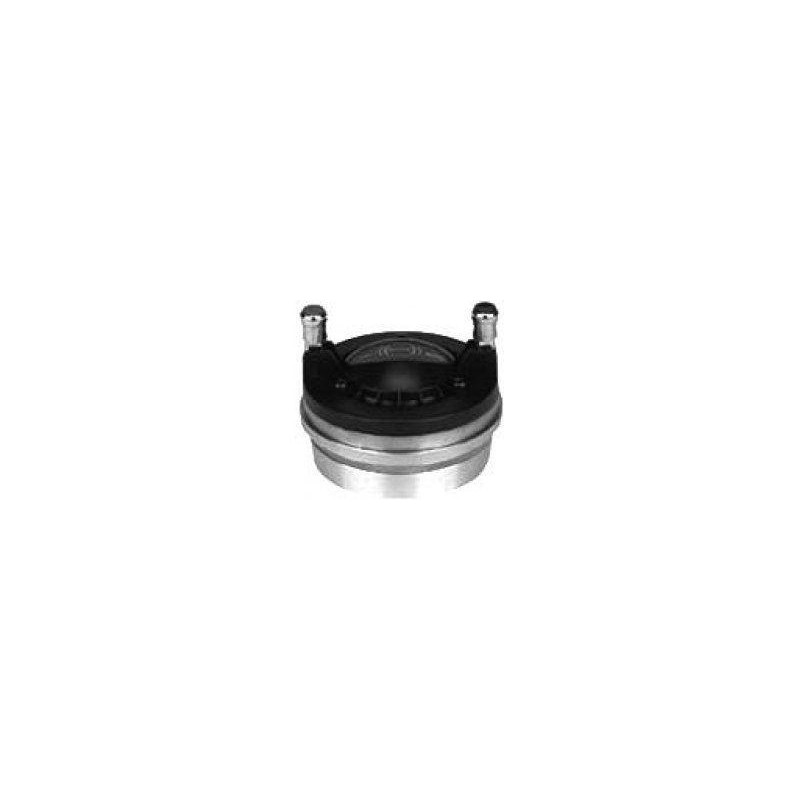

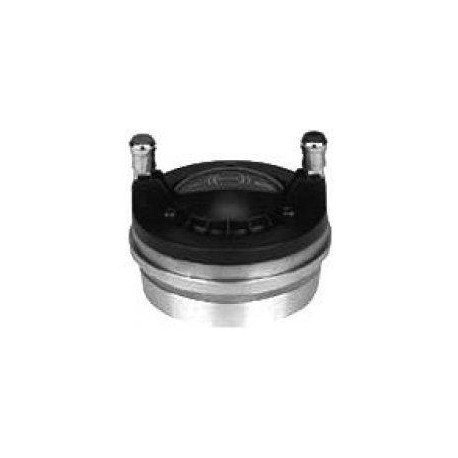

Beyma - CP385ND View larger

Beyma - CP385ND

CP385ND

High frequency compression driver

In Stock

More info

Specifications:

  • Throat diameter 25 mm 1 in.
  • Rated impedance 8 ohms.
  • Minimum impedance 5.2 ohms. @ 4.5 kHz
  • D.C. Resistance 4.7 ohms.
  • Power Capacity* 70 w AES above 1.5 kHz
  • Program Power 140 w above 1.5 kHz
  • Sensitivity** 107 dB 1w @ 1 m coupled to TD-250 horn
  • Frequency range 0.8 - 20 kHz
  • Recommended crossover 1.2 kHz or higher, 12dB/oct. min.
  • Voice coil diameter 44.4 mm. 1.75 in.
  • Magnetic assembly weight 1.1 kg. 2.42 lb.
  • Flux density 2.2 T
  • BL factor 7.5 N/A
