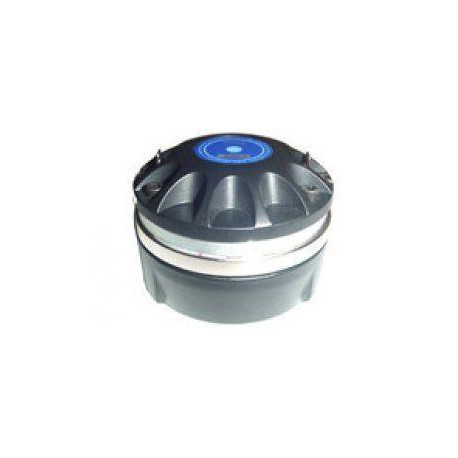

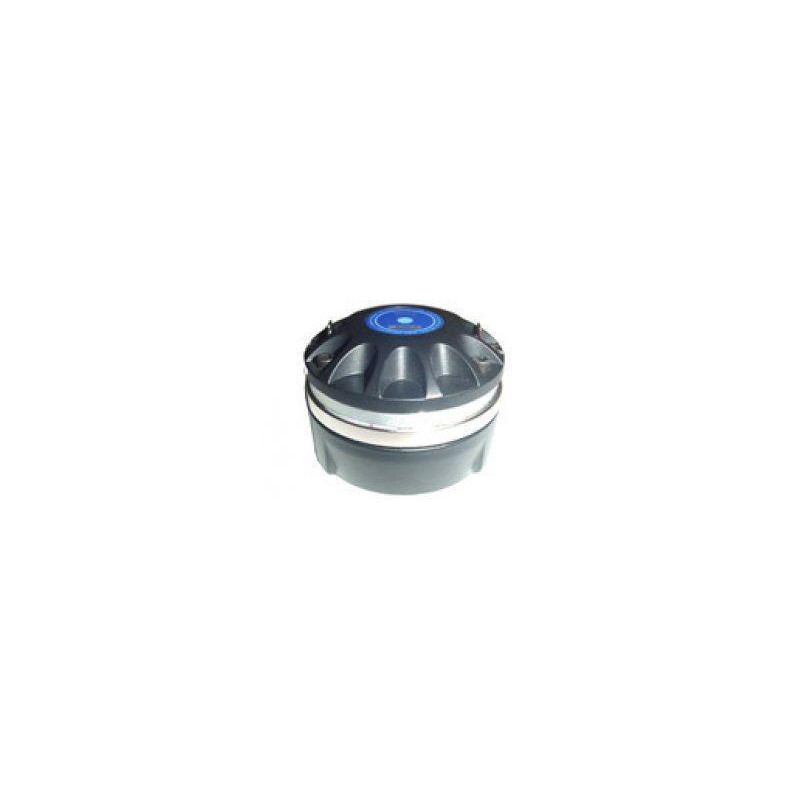

Beyma - SMC225Nd View larger

Beyma - SMC225Nd

SMC225Nd

High frequency compression driver

In Stock

More info

Specifications:

  • Throat diameter 25 mm. 1 in.
  • Rated impedance 8 ohms.
  • Minimum impedance 5.5 ohms @ 4.5 kHz
  • D.C. Resistance 5.6 ohms.
  • Power capacity * 40 w AES above 1.5 kHz
  • Program power 80 w above 1.5 kHz
  • Sensitivity ** 108 dB 1 w @ 1m coupled to TD250 horn
  • Frequency range 0.8 - 20 kHz
  • Recommended crossover 1.5 kHz or higher (12 dB/oct. min.)
  • Voice coil diameter 44.4 mm. 1.75 in.
  • Magnetic assembly weight 0.6 kg. 1.32 lb.
  • Flux density 1.8 T
  • BL factor 8 N/A
