Beyma - SMC60 View larger

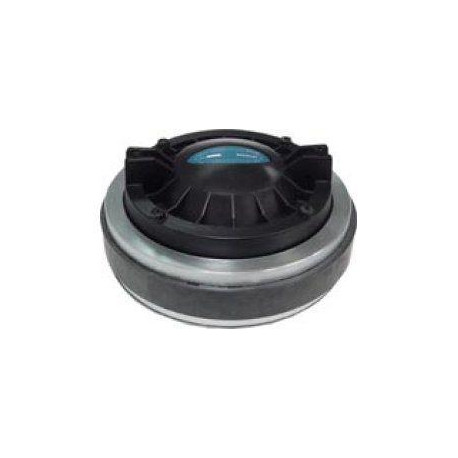

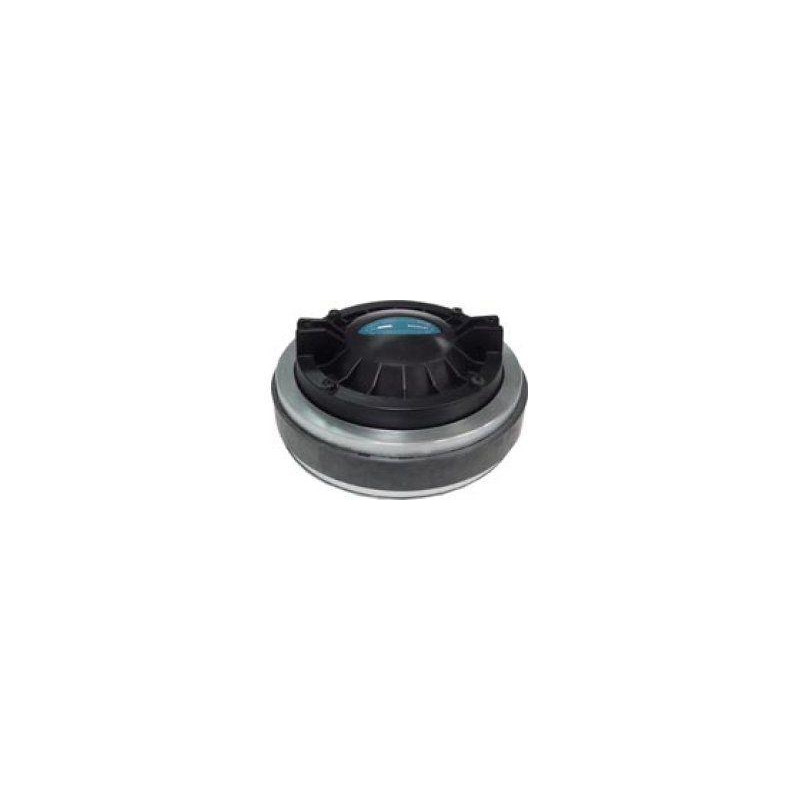

Beyma - SMC60

SMC60

2" (49 mm) exit compression driver

In Stock

More info

Specifications:

  • Throat diameter 49 mm. 2 in.
  • Rated impedance 8 ohms.
  • Minimum impedance 6.9 ohms @ 3.3 kHz
  • D.C. Resistance 5.5 ohms.
  • Power capacity * 80 wAES above 1 kHz
  • Program power 160 w above 1 kHz
  • Sensitivity ** 109 dB 1 w @ 1m coupled to TD-460N horn
  • Frequency range 0.5 - 18 kHz
  • Recommended crossover 0.8 kHz or higher (12 dB/oct. min.)
  • Voice coil diameter 72.2 mm. 2.84 in.
  • Magnetic assembly weight 4.1 kg. 9.02 lb.
  • Flux density 1.55 T
  • BL factor 8.8 N/A
