Beyma - SMC65 View larger

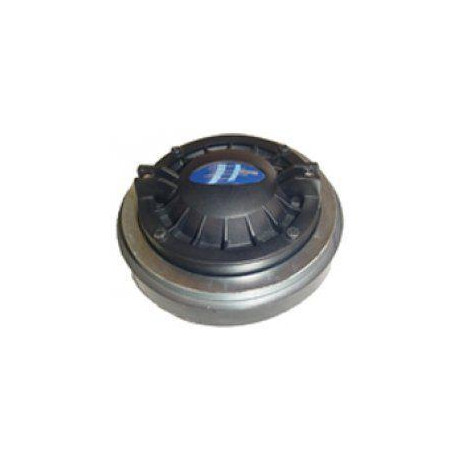

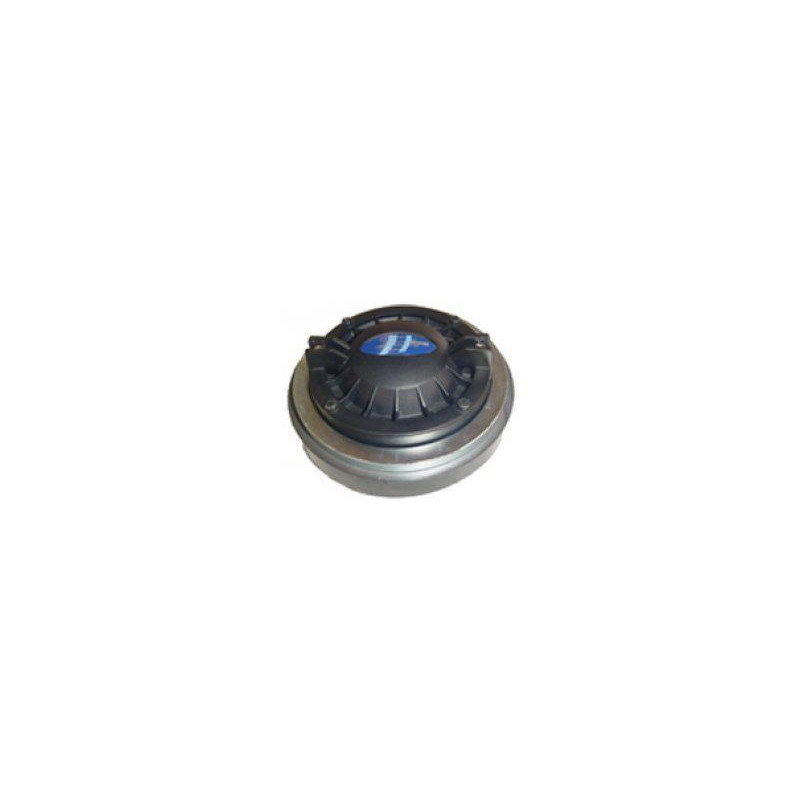

Beyma - SMC65

SMC65

High frequency compression driver

In Stock

More info

Specifications:

  • Throat diameter 36 mm. 1.4 in.
  • Rated impedance 8 ohms.
  • Minimum impedance 6.9 ohms @ 3.3 kHz
  • D.C. Resistance 5.5 ohms.
  • Power capacity 50 w AES above 800 Hz
  • 70 w AES above 1.5kHz
  • Program power 100 w above 800 Hz
  • 140 w above 1.5kHz
  • Sensitivity 107 dB 1w @ 1m
  • coupled to TD-365 horn
  • Frecuency range 0.7 - 18kHz
  • Recommended crossover 0.8 kHz or higher (12dB/oct. min)
  • Voice coil diameter 72.2 mm. 2.84 in.
  • Magnetic assembly weight 4.1 kg. 9.02 lb.
  • Flux density 1.55 T
  • BL Factor 8.8 N/A
