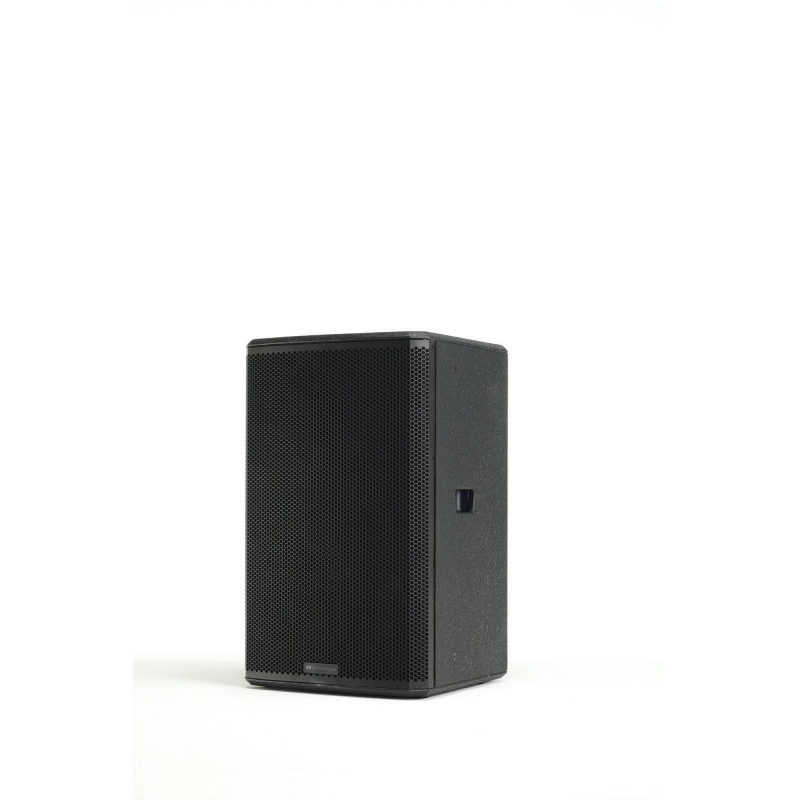

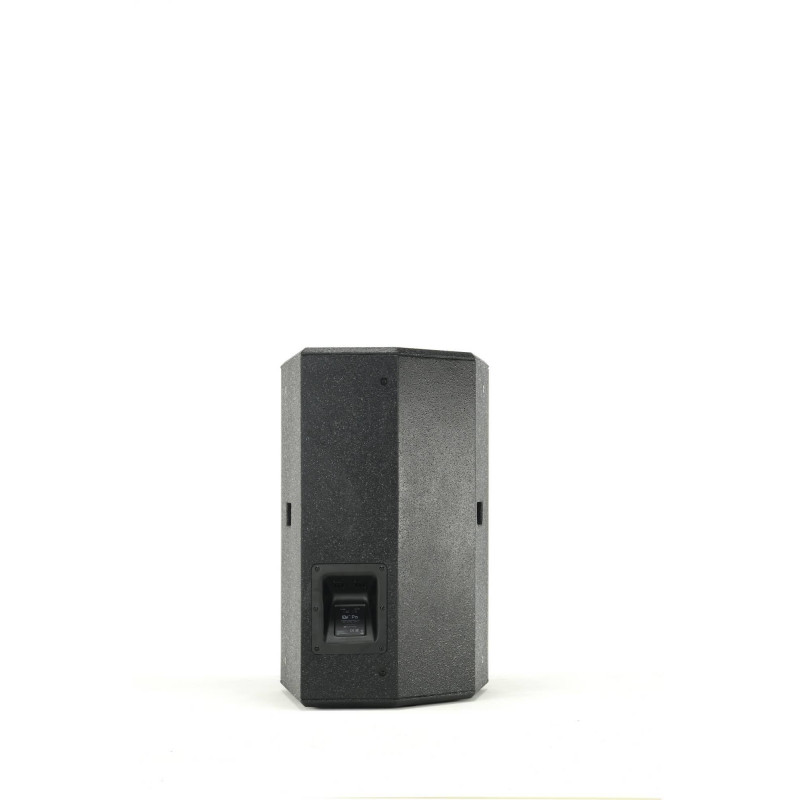

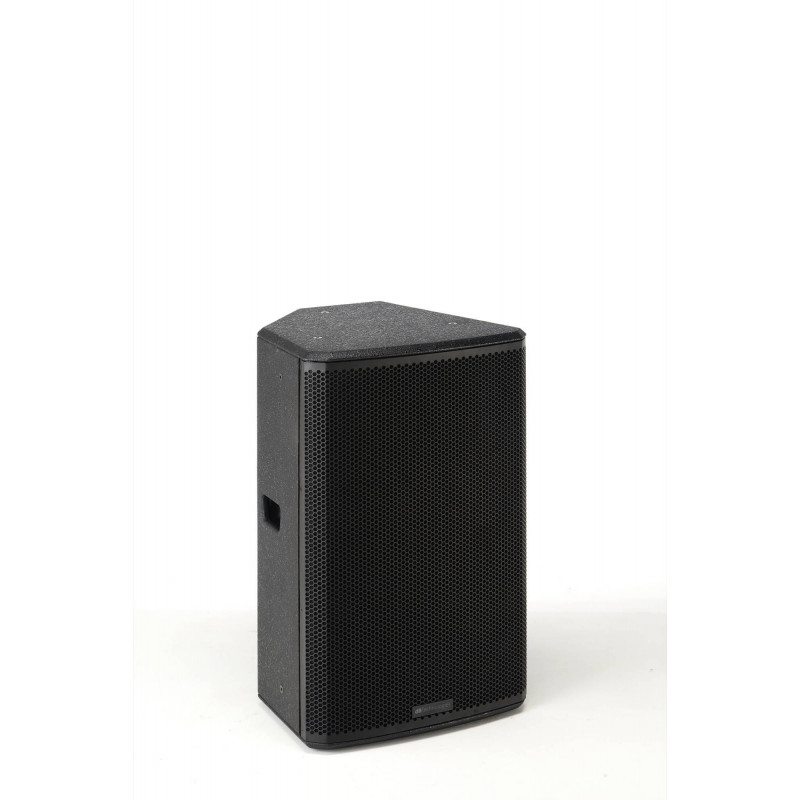

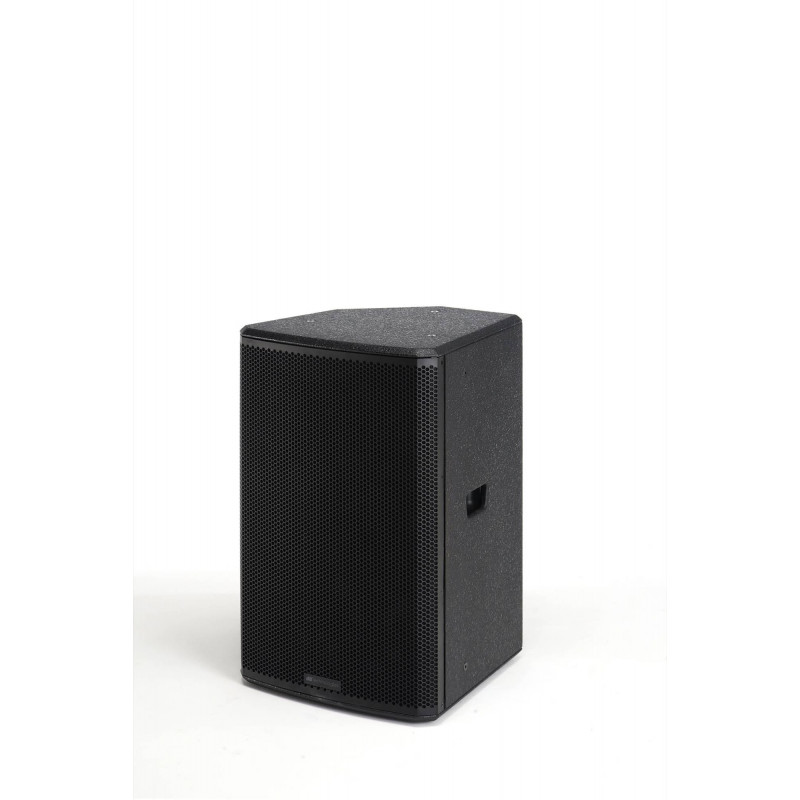

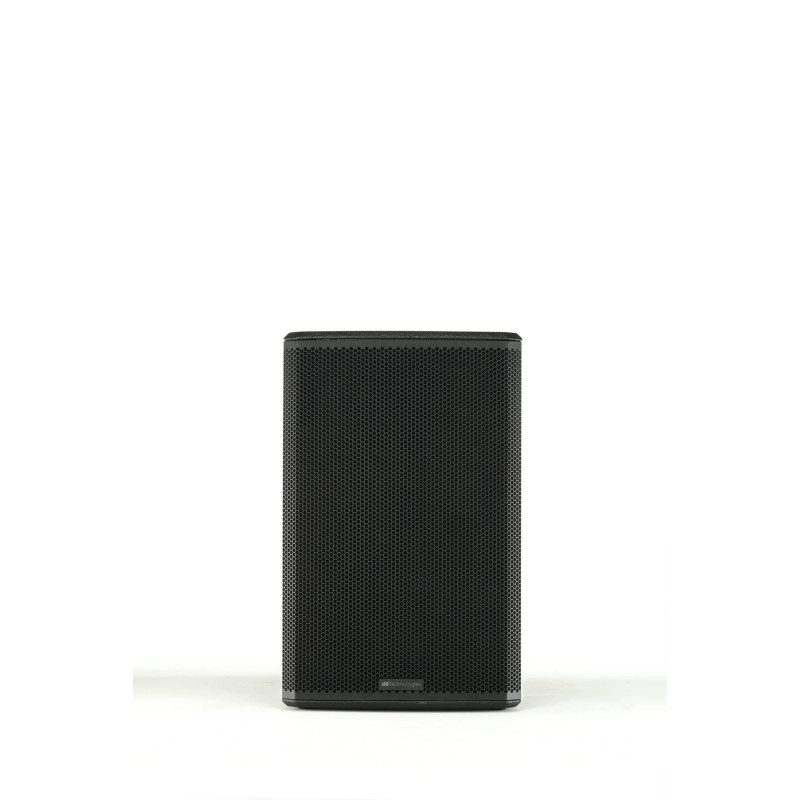

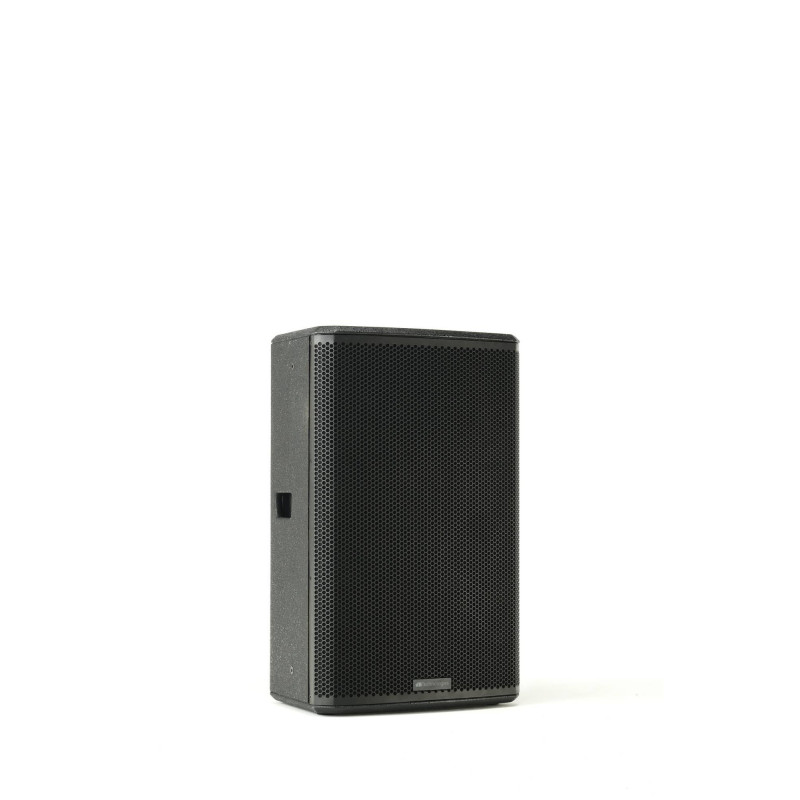

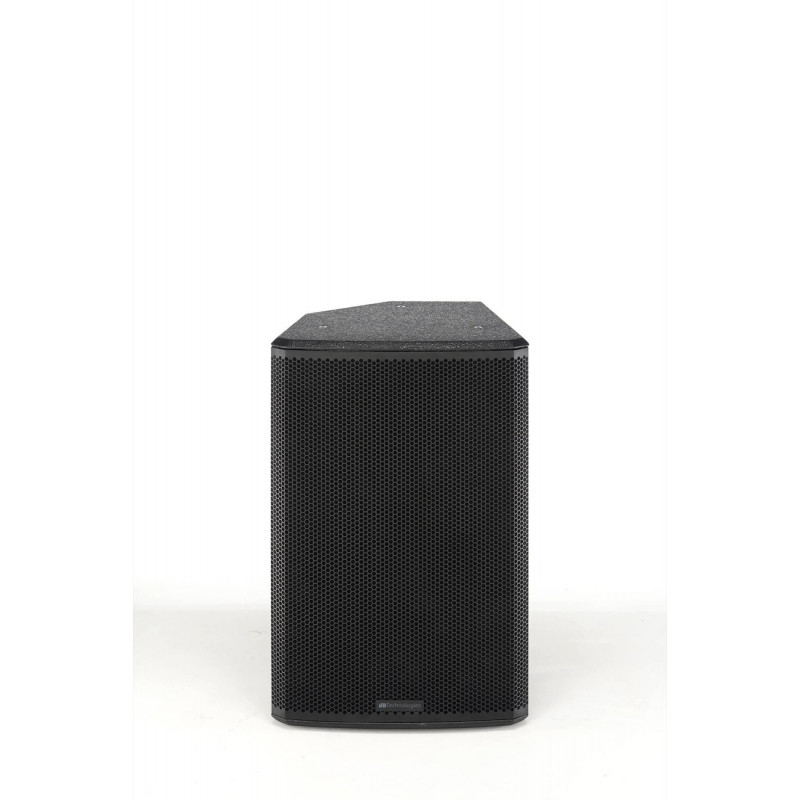

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

Full range LVX P15 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP15H or vertical brackets (VB-LP1215V).

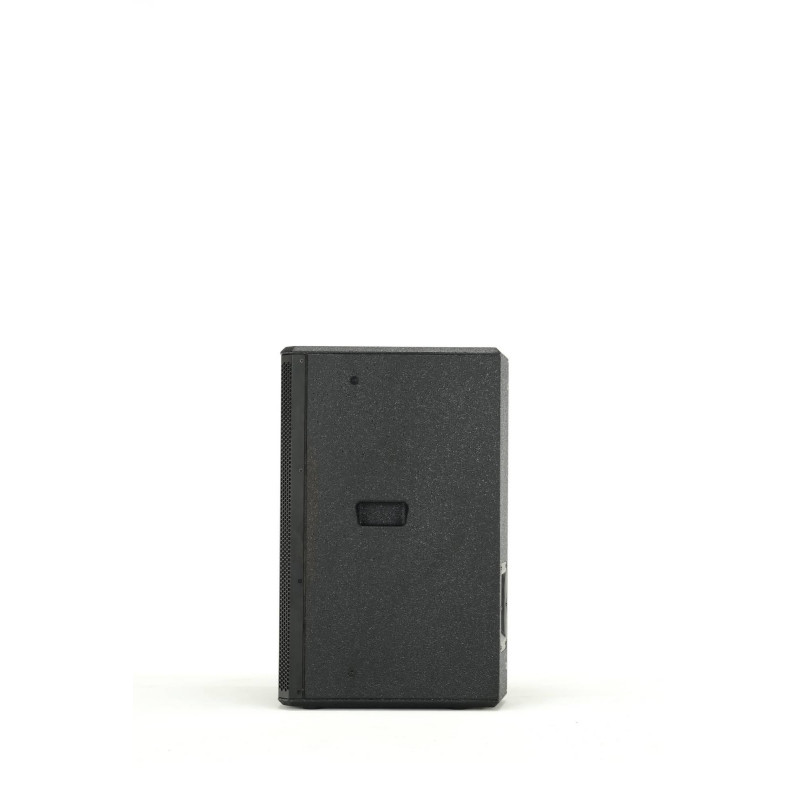

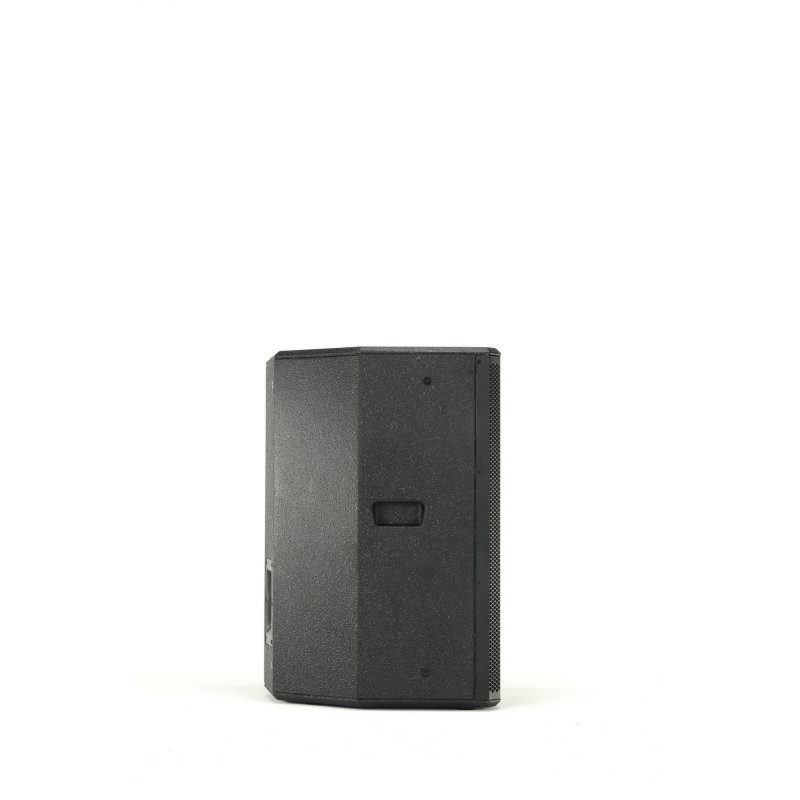

The cabinet features 1 integrated handle per side and a 36 mm pole mount plate.

All enclosures and accessories of LVX P series are available in black or white version.

Technical Data

Speaker Type

2-Way Passive Speaker

Acoustical data

Peak Power

800 W

Impedance

8 Ohms

Frequency Response [- 10 dB]

58- 21.000 Hz

Max SPL

129 dB

HF

1 “, 1.35" v.c.

Directivity

90x60°

Horn

Rotatable

LF

15“, 2.5" v.c.

Input

Signal Input

1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output

1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

Housing

Plywood

Pole Mount

36 mm

Angle Up

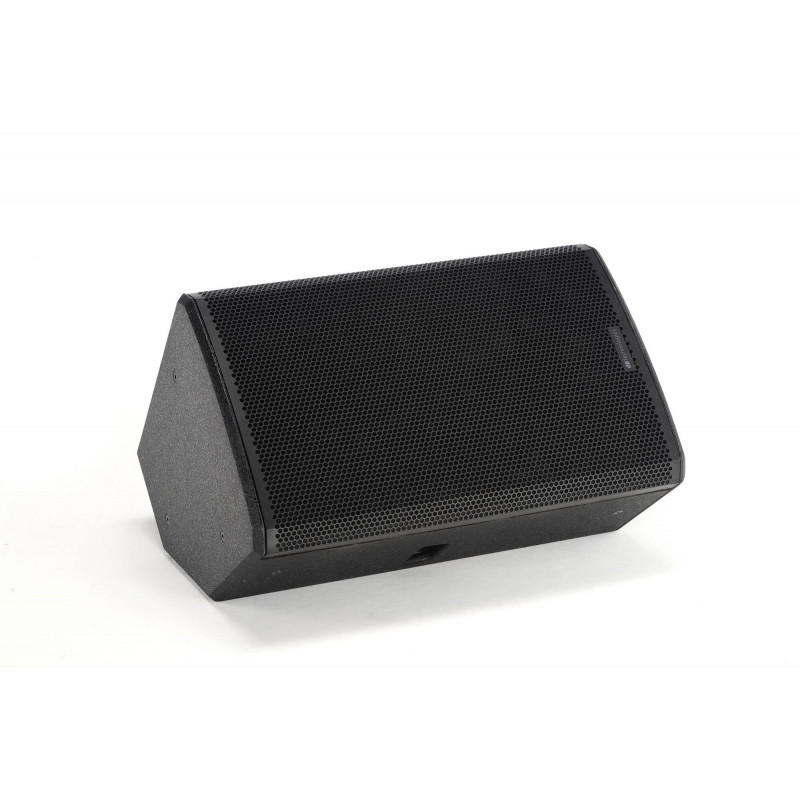

Monitor use 40°

Rigging Points

12 x M8

Handles

2 (1X side)

Width

420 mm (16.53 in)

Height

680 mm (26.77 in)

Depth

430 mm (16.92 in)

Weight

19.7 kg (43.4 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
