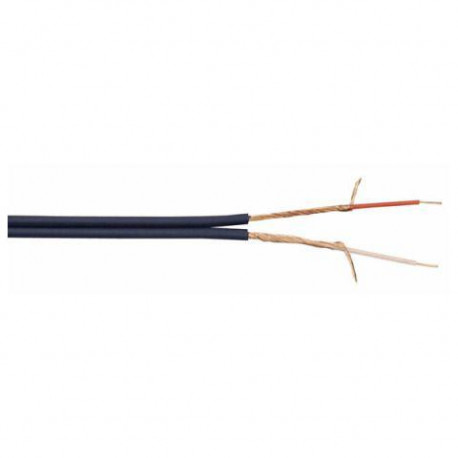

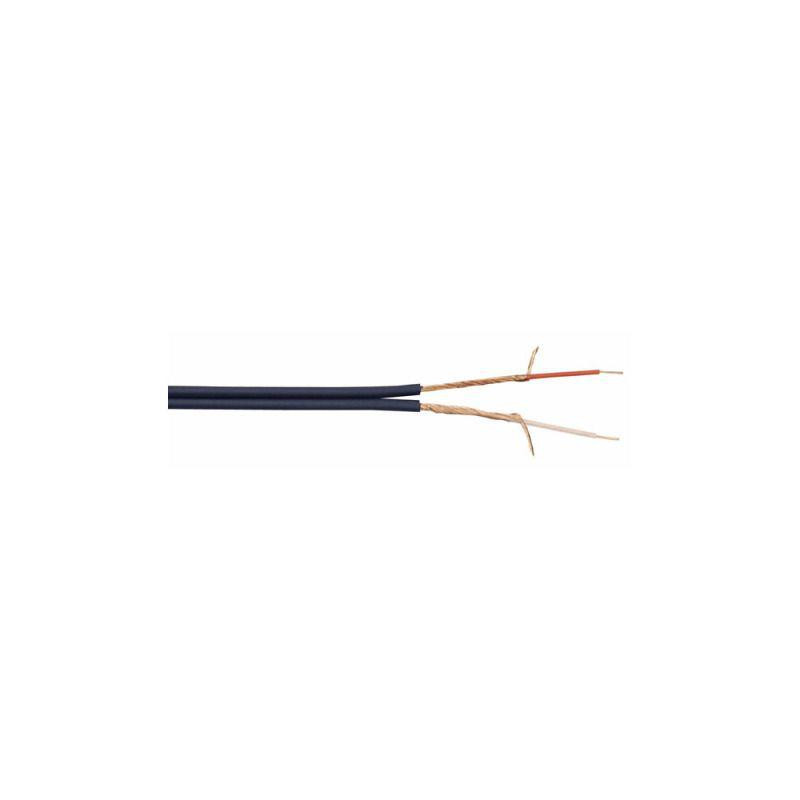

Specifications:

• Conductor drains Ø mm: OFC 20 x 0,12
• Conductor insulation: PE red + transparent
• Conductor insulation: 1,3 (Ø in mm)
• 1st shield: OFC twisted 32 x 0,12
• 2nd shield: -
• Outer isolation: PVC dark blue
• Outer isolation: 2x3 (Ø in mm)
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 50 Ohm/Km
• Cap. Inner conduct. Shield
• / Inner conduct.: 160 pF/m
• Working temperature: -20~60 °C (min./max.)
• Working Voltage overflash: 30V
• Nom Impedance: 35 Ohm
• Attenuation:
  • 10 MHz: 0,02480 / 90 MHz: 0,28000 / 100 MHz: 0,28530 / 220 MHz: 0,55350 /
  • 470 MHz: 1,33130 / 770 MHz: 2,21180 / 1000 MHz: 3,0271
