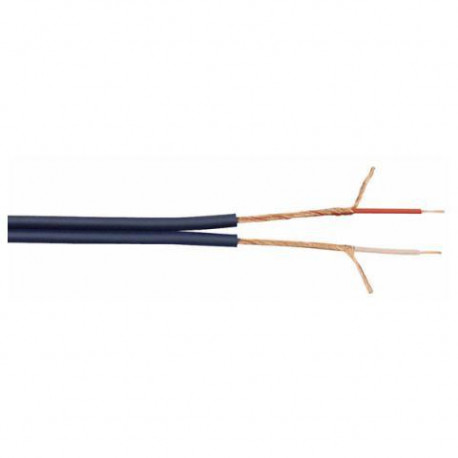

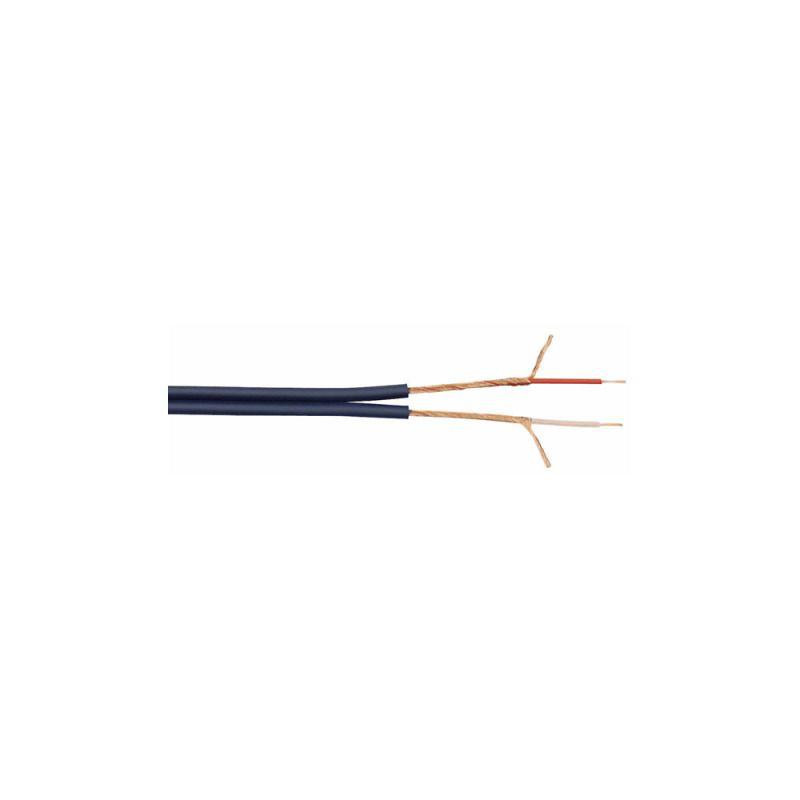

Dap Audio - AV-48 View larger

Dap Audio - AV-48

AV-48

Audio/Video Cable a-symmetric 75 Ohm, 100 m on spool

In Stock

More info

Specifications:

  • Conductor drains Ø mm: OFC 20 x 0,12
  • Conductor insulation: PE red + transparent
  • Conductor insulation: 1,3 (Ø in mm)
  • 1st shield: OFC twisted 32x0,12
  • 2nd shield: -
  • Outer isolation: PVC dark blue
  • Outer isolation: 2x4 (Ø in mm)
  • Conductor resistance: 80 Ohm/Km
  • Shield resistance: 50 Ohm/Km
  • Cap. Inner conduct. Shield
  • / Inner conduct.: 160 pF/m
  • Working temperature: -20~60 °C (min./max.)
  • Working Voltage overflash: 30V
  • Nom Impedance: 35 Ohm
  • Attenuation:
    • 10 MHz: 0,02480 / 90 MHz: 0,28000 / 100 MHz: 0,28530 / 220 MHz: 0,55350 /
    • 470 MHz: 1,33130 / 770 MHz: 2,21180 / 1000 MHz: 3,0271
