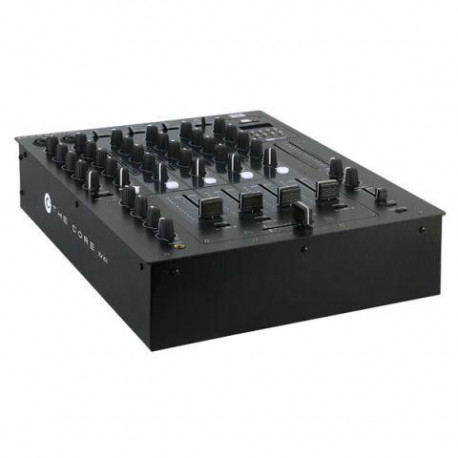

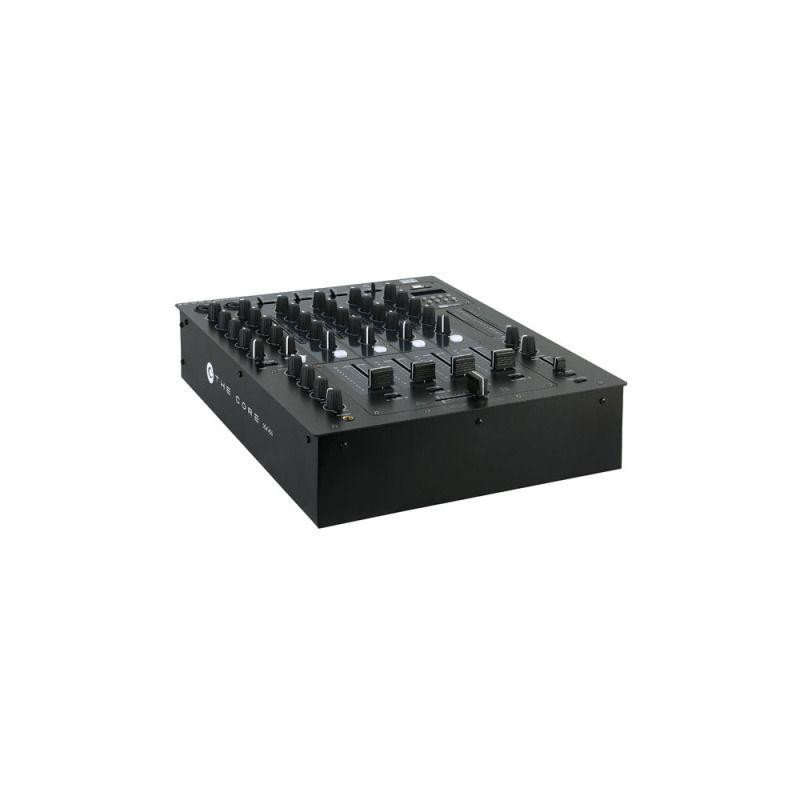

Dap Audio - CORE MIX-4 USB

CORE MIX-4 USB

4 Channel DJ mixer with USB interface

In Stock

Europe Warehouse: 69

More info

Specifications:

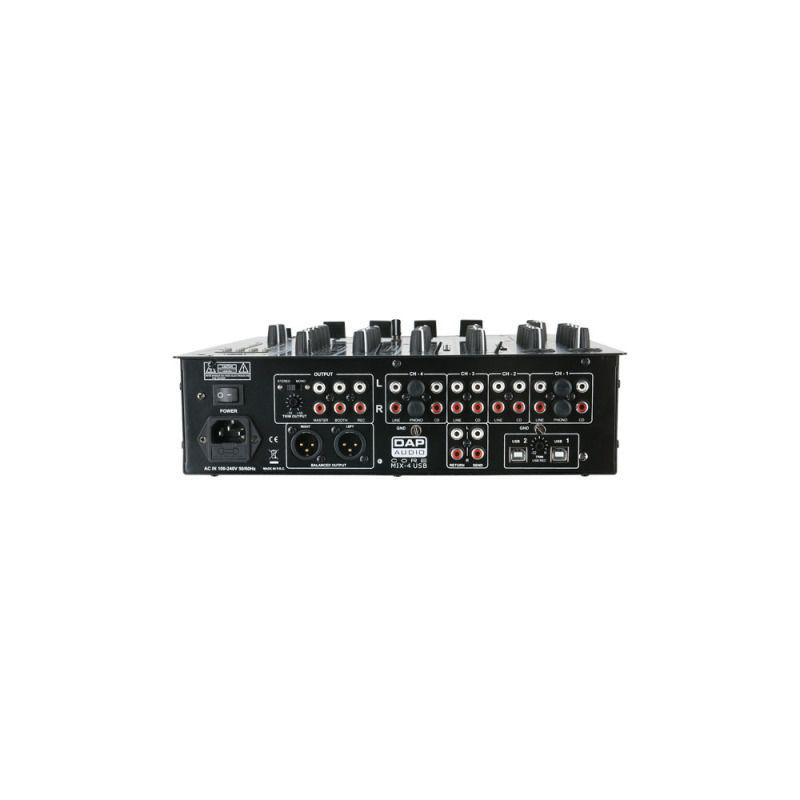

The CORE MIX-4USB is a 4 channel DJ club mixer with 12 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-4USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a short fader. It has 2 microphone channels with a 3 band EQ, talk-over function and an on/off switch to make MC-ing safe and easy for party jocks & MC's. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and a MP3 player-recorder. The MP3 module can record and playback your life performance directly on an USB or SD device.
  • Inputs channels: 2 x Microphone, combo XLR/Jack
    • 8 x Line, RCA
    • 2 x Phono, RCA
    • 2 x USB, Type B
    • 1 x Return RCA
  • Output channels: 1 x Record, RCA
    • 1 x Booth, RCA
    • 1 x Master unbalanced, RCA
    • 1 x Master balanced, XLR
    • 1 x Headphones, TRS 6.3mm Jack
    • 2 x USB, Type B
    • 1 x Send, RCA
  • USB Port: Audio in- & output interface for PC & Mac, 48 KHz, 16 bit
  • Channel EQ range: -26dB / +12dB
  • Microphone EQ range: -12dB / +12dB
  • Frequency response: 20Hz -20Khz
  • T.H.D: <0.1%
  • MP3 Module: 128Kbit 44.1 Khz, Max 16GB
  • Dimensions: 310 x 380 x 88 (WxDxH)
  • Power supply: 100-240V AC, 50/60Hz
  • Power consumption: 13 Watt
  • Weight: 5Kg
