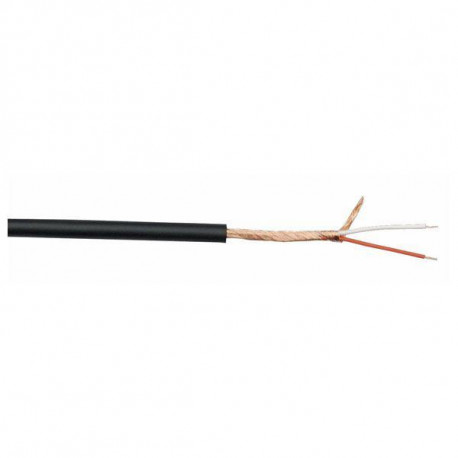

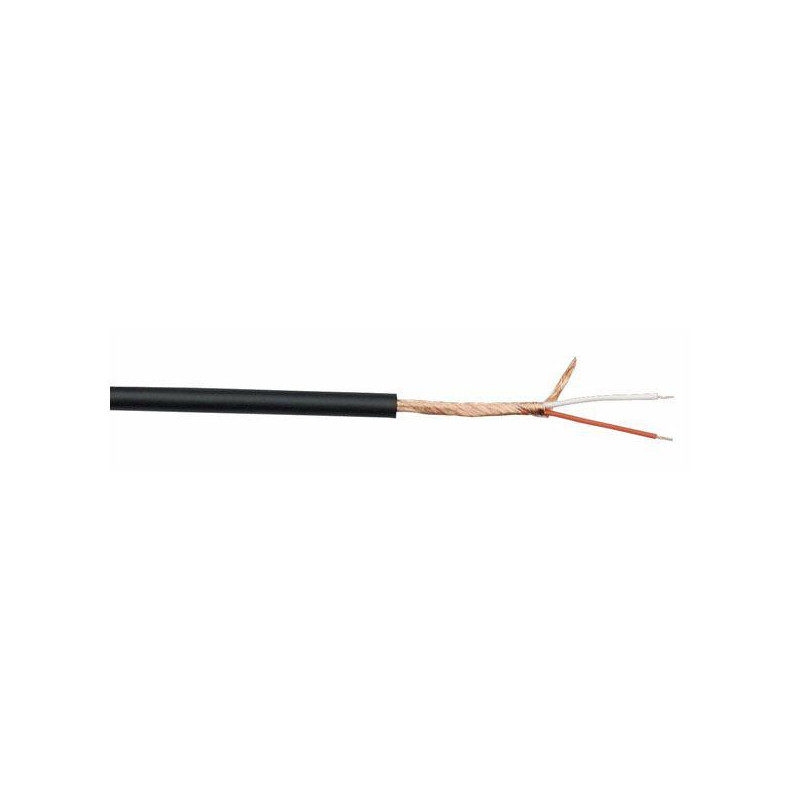

Features:

• • Conductor drains Ø mm: OFC 10 x 0,10
• • Conductor insulation: PE red+white
• • Conductor insulation: 1,0 (Ø in mm)
• • Filler material: -
• • 1st shield: OFC twisted 40 x 0,12
• • 2nd shield: -
• • Outer isolation: PVC matte black
• • Outer isolation Ø in mm: 5

Conductor resistance: 160 Ohm/Km

Shield resistance: -

Capacity Inner conductor: 60 pF/m

Cap. Inner conduct. Shield

/ Inner conduct.: -

Working temperature min. / max.: -20~60 °C

Working Voltage overflash: 30V

Nom Impedance: 110 Ohm
