Dap Audio - MC-216 100m

MC-216 100m

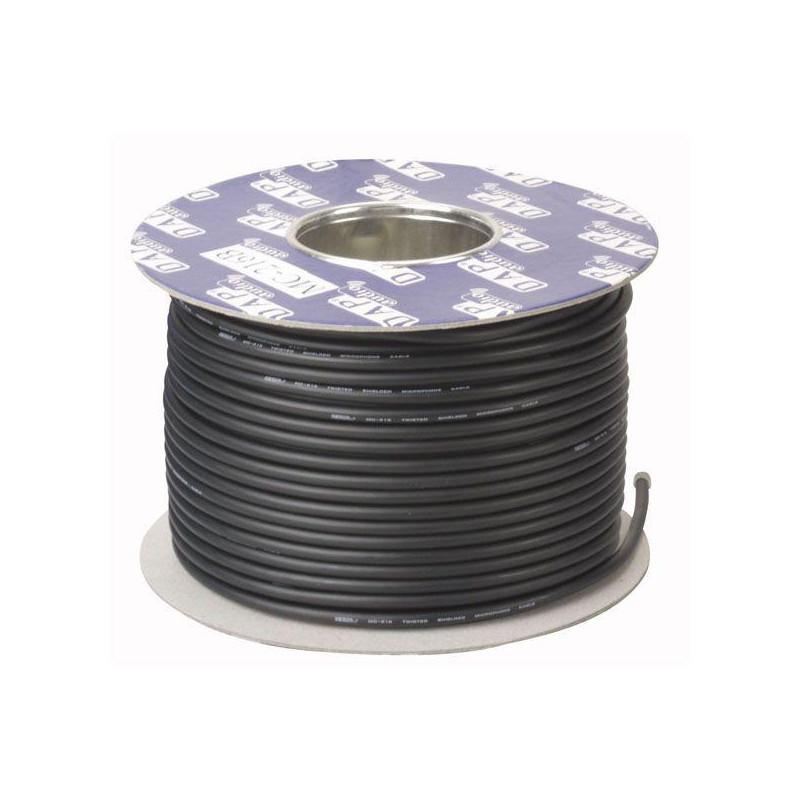

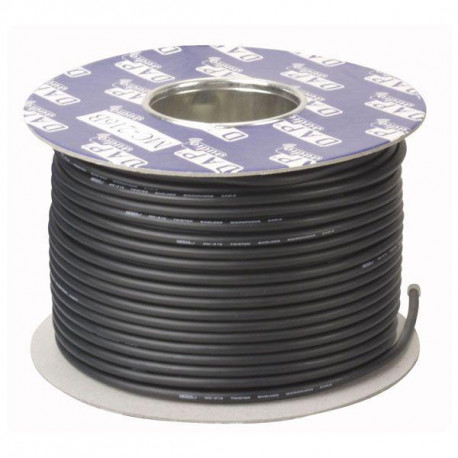

Mic/line cable, 100 m on spool

66,00 €

-

In Stock
Ready for dispatch

More info

Features:

  • Conductor drains Ø mm: OFC 28 x 0,10
  • • Conductor insulation: PE red+blue
  • • Conductor insulation: 1,5 (Ø in mm)
  • • Filler material: paper + cotton yarn
  • • 1st shield: OFC twisted 83 x 0,12
  • • 2nd shield: -
  • • Outer isolation: PVC black, blue, red,
  • yellow, green
  • • Outer isolation Ø in mm: 6
  • Conductor resistance: 80 Ohm/Km
  • Shield resistance: 25 Ohm/Km
  • Capacity Inner conductor: 60 pF/m
  • Cap. Inner conduct. Shield
  • / Inner conduct.: 78 pF/m
  • Working temperature min. / max.: -20~60 °C
  • Working Voltage overflash: 30V
  • Nom Impedance: 110 Ohm
