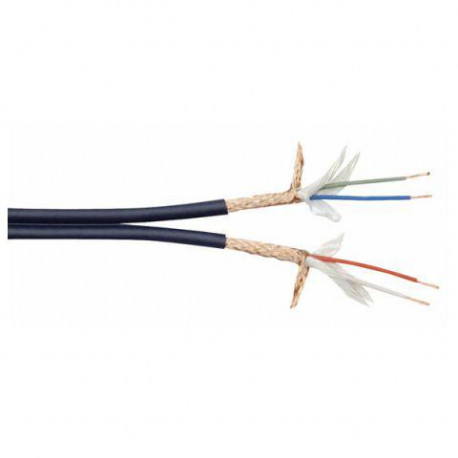

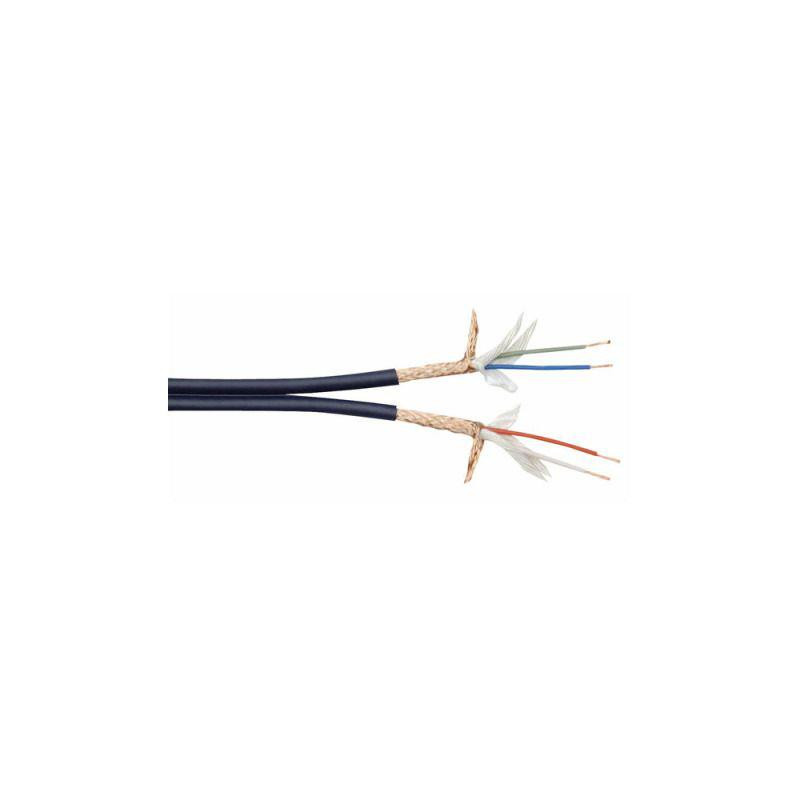

Dap Audio - MCD-224 View larger

Dap Audio - MCD-224

MCD-224

Dual line cable, 100 m on spool

In Stock

More info

Specifications:

  • Conductor drains Ø mm: OFC 20 x 0,12
  • Conductor insulation: PE
  • Conductor insulation: 1,4 (Ø in mm)
  • Filler material: -
  • 1st shield: OFC braided
  • 2nd shield: -
  • Outer isolation: PVC black
  • Outer isolation Ø in mm: 2 x 4
  • Conductor resistance: 80 Ohm/Km
  • Shield resistance: 25 Ohm/Km
  • Capacity Inner conductor: 65 pF/m
  • Cap. Inner conduct. Shield
  • / Inner conduct.: 82 pF/m
  • Working temperature: -20~60 °C
  • (min. / max.)
  • Working Voltage overflash: 30V
  • Nom Impedance: 100 Ohm
