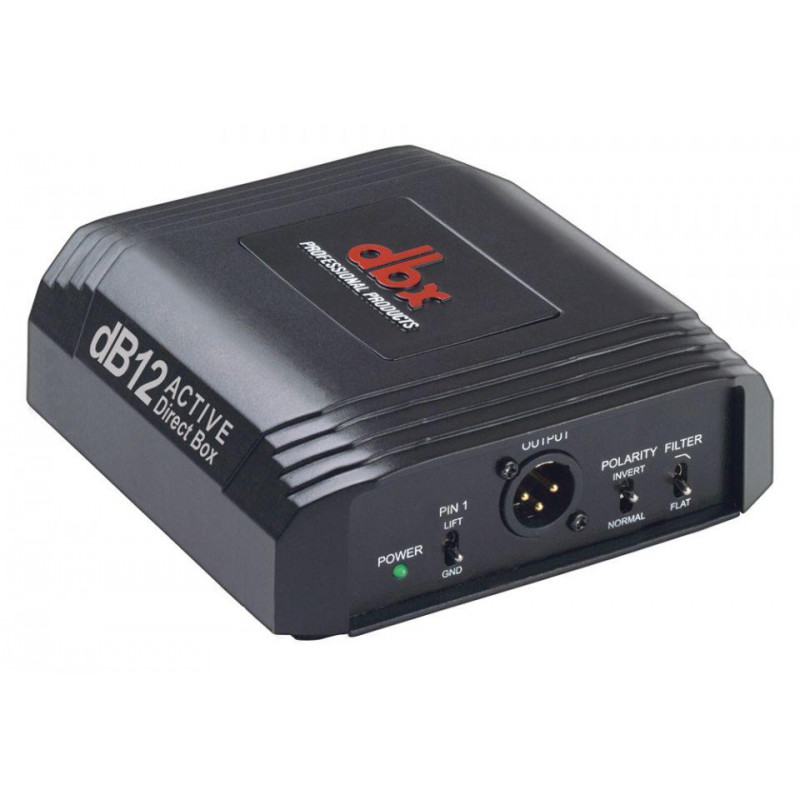

DBX - DB12 View larger

DBX - DB12

DB12

Active Direct Box

176.01€%22.73 You save 40.01€
136,00 €

Add to wishlist

Sold Out

Europe Warehouse: 0

More info

Specifications:

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik® XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
  • 4 Year Warranty!

Additional dB12 Features

  • Phantom Powered
  • Green LED Phantom Power Indicator
  • +48V Phantom Operation
  • Low-Noise Active Circuitr



Input1 instrument/line/speaker level
Input Connectors1/4" jack
Input TypeUnbalanced, RF filtered
Insert Impedance150k Ohm typical
Max Input+20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
Output(Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
Output ConnectorsXLR male balanced
Output Impedance150k Ohm typical
Max Output0dBu
TransformerCustom dbx mu-metal-shielded
Frequency Response20Hz to 20kHz, +/-2.5dB
Noise<-105dB unweighted, 22kHz BW
THD<0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
Dimensions5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Unit Weight1.4 lbs / 0.65 kg
