Specifications:

• Net Weight: 39 kg

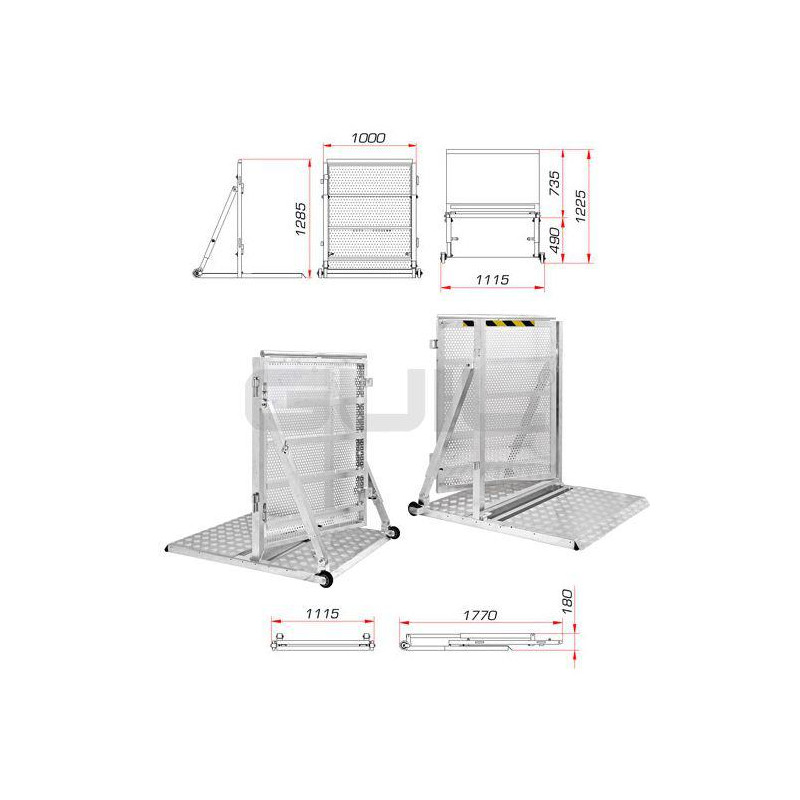

• Folded Dimensions: 1115 x 180 x 1770 mm
• Wheels: Ø 100 mm
• Material: Polished Aluminium
• Alloy: EN-AW 6082 T6

GUIL following all international standards for safety and resistance (NF P90-306) has developed a new models of Barriers a lightweight version made of aluminium.

New ATV Barriers has been re-designed as an answer to the new market needs, satisfying the big demand for barriers that offer a comfort area for the audience and at the same time give a safe area for the authorised personnel.

The new modular barrier together with our practical gate barrier and barrier with lower opening for wires, make the GUIL crowd control assembly one of the safest and most resistant barriers in the market, becoming an indispensable item for public events where a safe space division is needed.

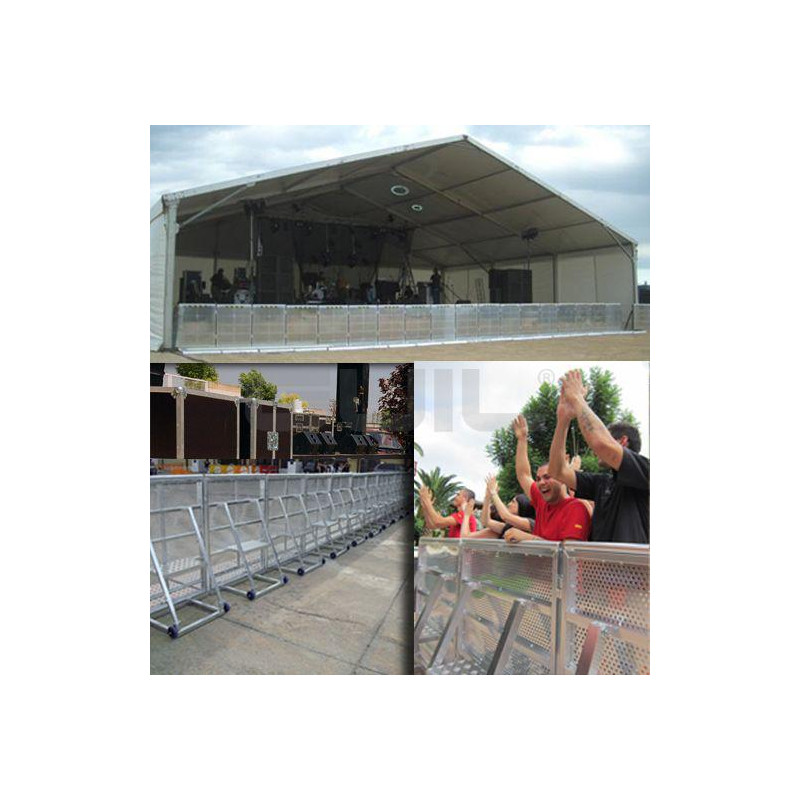

These heavy-duty barricades are designed to safely control crowds in different sort of events like concerts with large audiences, launching of products, performances, political meetings, etc. They not only offer workers, security guards... a safe area to operate from, but they are also thoroughly made thinking in the security and commodity of the audience.

ATV Barricade, made in accordance with European directives 89/392/CEE, 91/368/CEE and 93/44/CEE, are specially designed for a fast and easy attachment becoming in a perfect complement for any event where space needs to be defined, guaranteeing maximum security for technicians, authorised personnel and security guards.

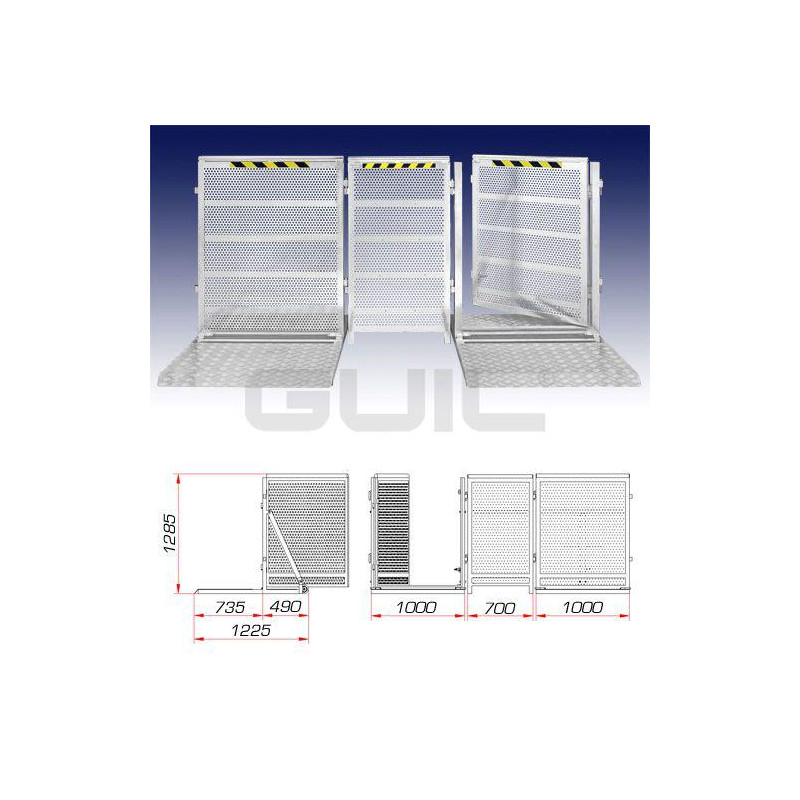

Crowd control Assembly is made joining the modules through a male/female coupling system allowing a quick and easy attachment. Thanks to these couplers the assembly can be set in uneven surfaces. This joining system also guarantees a maximum stability and resistance to the whole structure without the need to use any tools.

The profiles from the new Barriers have rounded edges to avoid damages and guarantees public safety at all moments. Thanks to its hinged system this modular structure is fully foldable becoming easy to handle and store. As it is a complete compact unit, there is no possibility of loosing any components, being the best complement for any temporary event. These practical Crowd Control Barriers can be carried and stored in special containers Ref. CTO-05. (Available set of four swivel castors with brakes Ref. CTR-02.

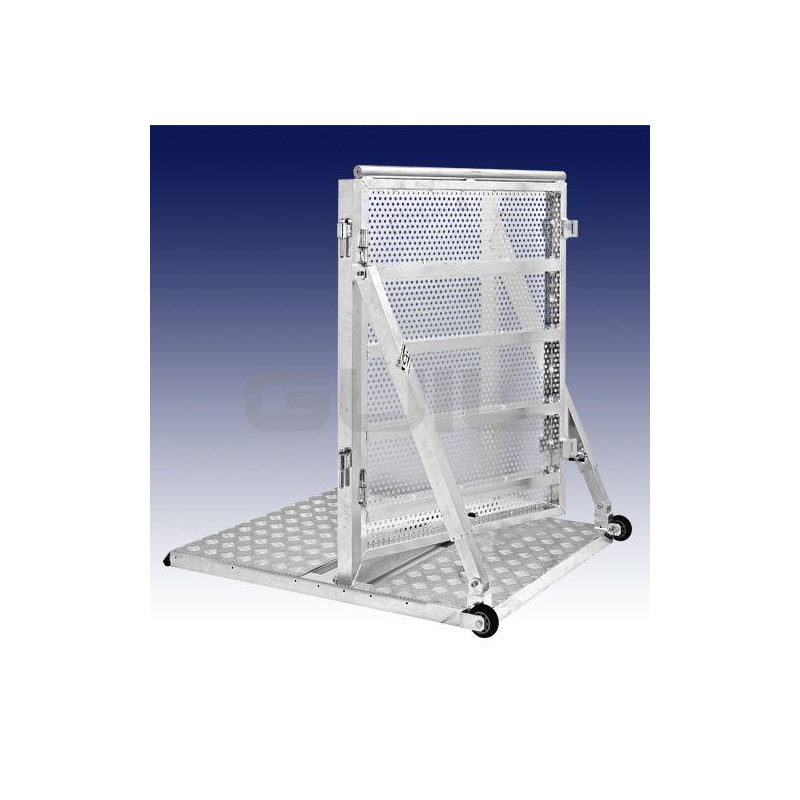

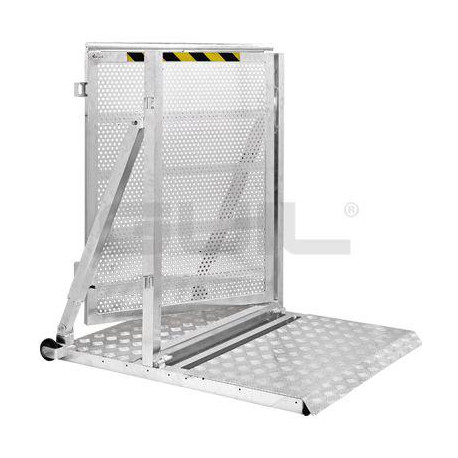

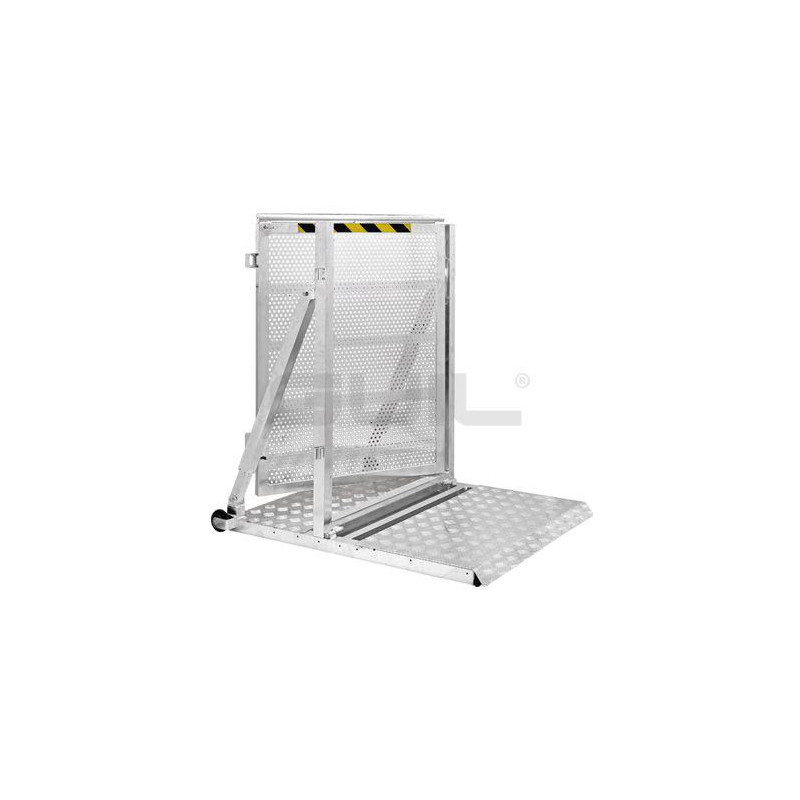

Crowd Control Doors are specially designed to be part of the Crowd Control Assembly, offering an easy access to the authorised personnel. These gates are fitted with a double security lock and two heavy duty castors (Ø 100 mm) in order to facilitate its handling and positioning in the working place (wheelbarrow type).

Its non-slipping aluminium base together with its ramp design prevents public from bumping into it or slipping. Its fretwork steel sheet has three functions: to lighten the structure weight without loosing safety, to allow the sound to go through and to guarantee visibility.
