RAMP KIT TO MAKE RAMPS WITH TM440 PLATFORMS
In order to optimise costs, time, storage and transport space, GUIL offers the possibility to make ramps to match your stage height, just by using the standard TM440 platforms and the Ramp Kit ref. RMP-01.

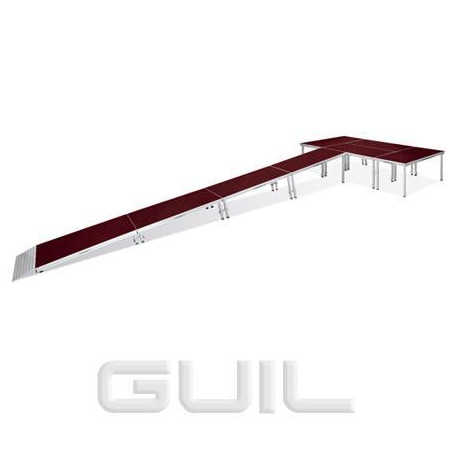

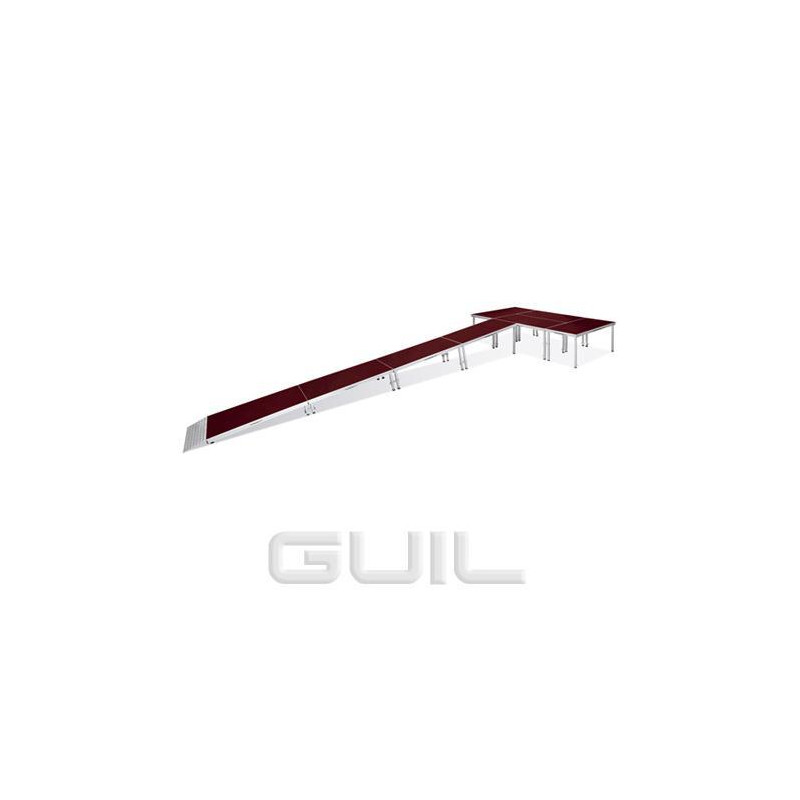

GUIL Ramps can be assembled into many configurations; its modular design allows you to set up ramps with different heights and gradients.
GUIL Ramp consists of two basic elements:
* Standard TM440 Platforms with adjustable legs and connectors (as many units as necessary to set the ramp length and gradient requested).
* RMP-01 Kit Ramp. It includes:

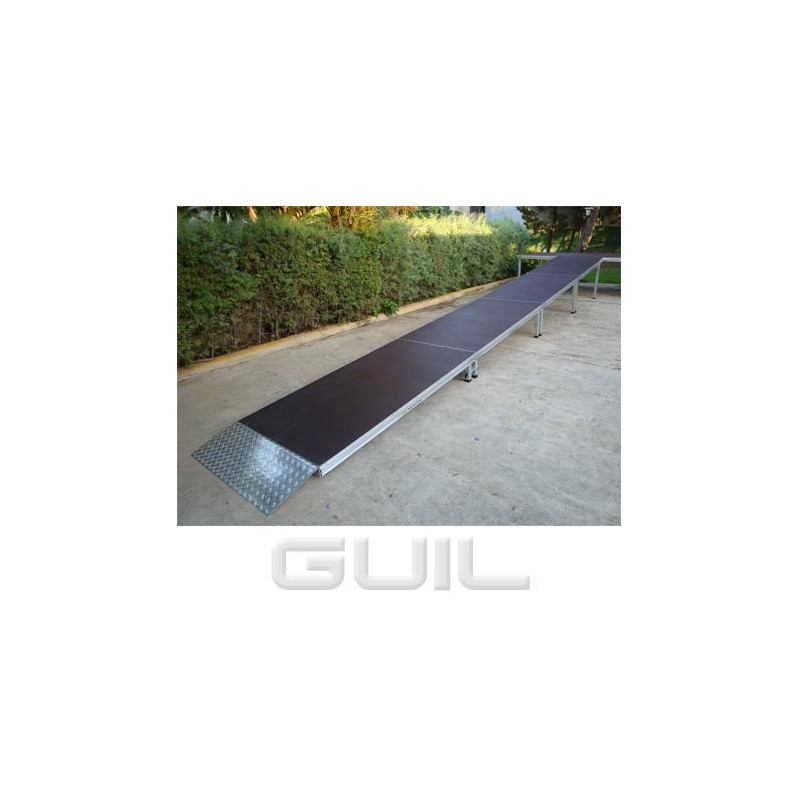

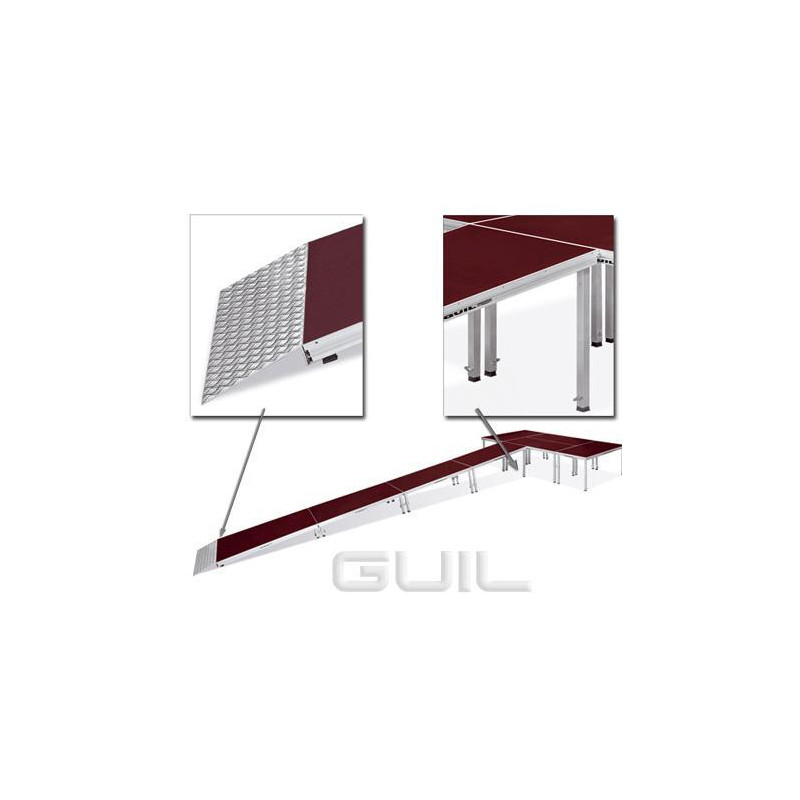

- Diamond plate starter ramp.
- Two frame clamp connectors Ref. TMU-02/440
- Two fixed aluminium legs (50 x 50 x 3 mm) for the platform that is located next to the diamond plate starter ramp.
- Two adjustable aluminium legs for the platform that is located next to the stage.
Each telescopic leg consists of two different profiles:
• External square profile of 50 x 50 mm by 3 mm thick. (Special curved design)
• Inner reinforced profile of 42.5 x 42.5 mm by 3.5 mm thick.
Contact our technical department to discuss your specific ramp needs.
