Guil - TP300-A

TP300-A

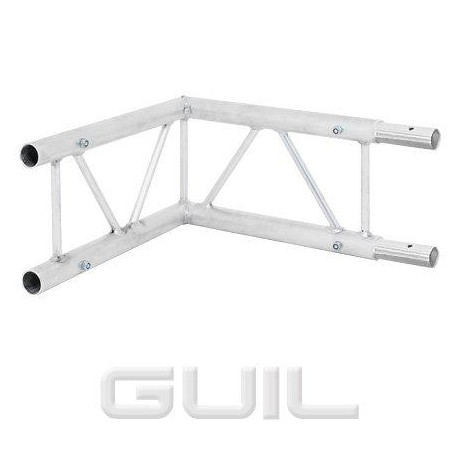

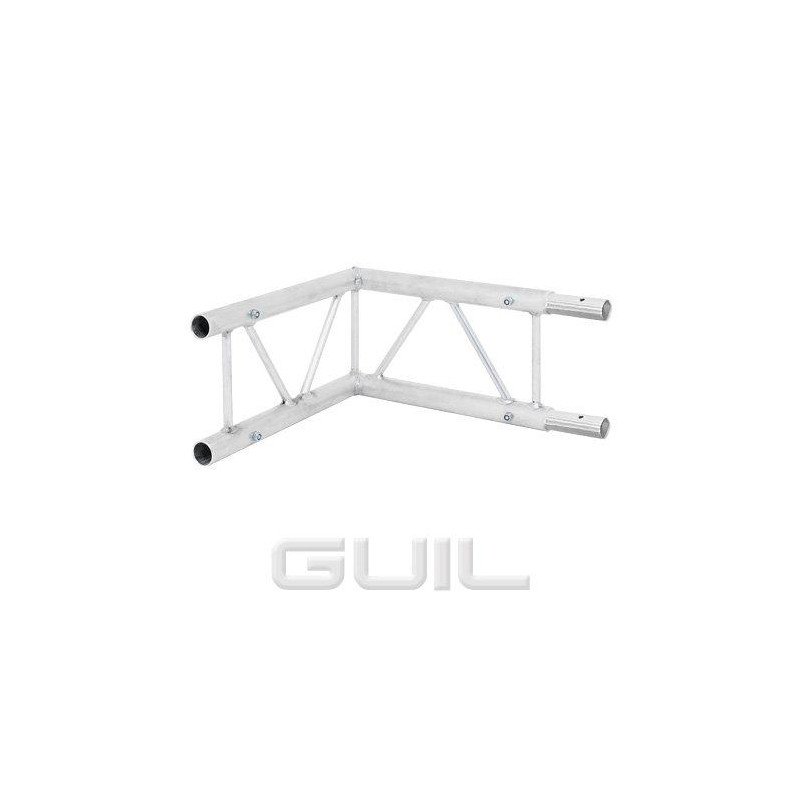

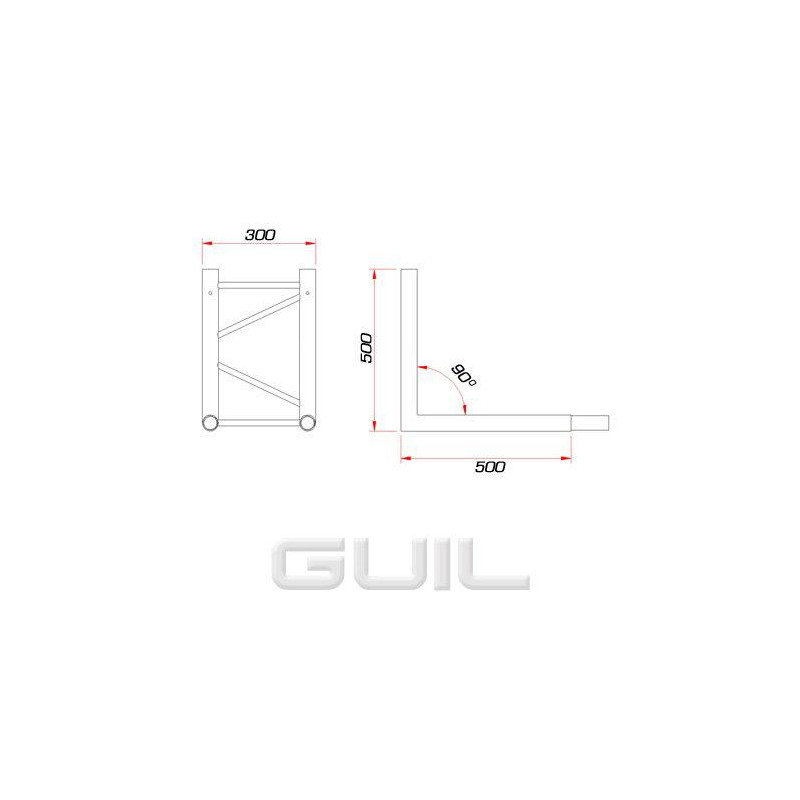

TP300-A 90º horizontal corner block (parallel truss ø 50 x 2.5 mm)

In Stock

More info

T300-A is a 90º horizontal two way corner manufactured from extruded aluminium tube (Alloy: EN-AW 6061 T6 according to the safety norm UNE-EN573) and TIG welded (continuous cord) for maximum resistance.

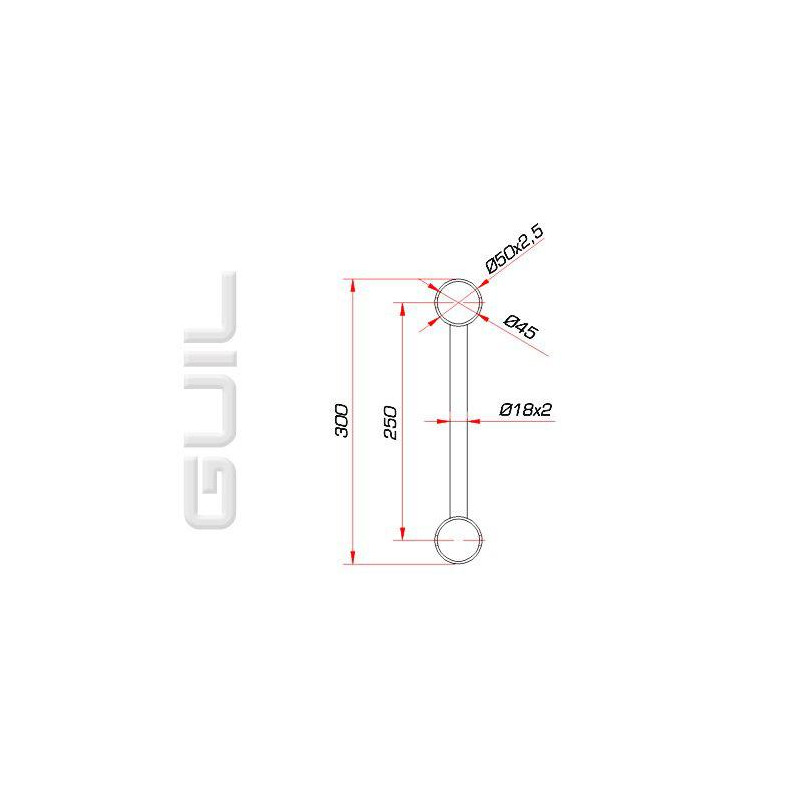

- Wall main tubes of 50 mm x 2.5 mm
- Braces/Diagonals of 18 mm x 2 mm

Features:

Net Weight: 2,85 kg
Colour: Polished Aluminium
Main Tubes: Ø 50 x 2,5 mm
Braces: Ø 18 x 2 mm
Material: Aluminium
Alloy: EN-AW 6061 T6
Standards: DIN 4113; BS 8118

T300-A is a 90º horizontal two way corner manufactured from extruded aluminium tube (Alloy: EN-AW 6061 T6 according to the safety norm UNE-EN573) and TIG welded (continuous cord) for maximum resistance.

- Wall main tubes with 50 mm x 2.5 mm
- Braces/Diagonals with 18 mm x 2 mm

TP300-A corner is part of a full range of corners and accessories designed to set up multiple configurations with the TP300 Parallel Truss.

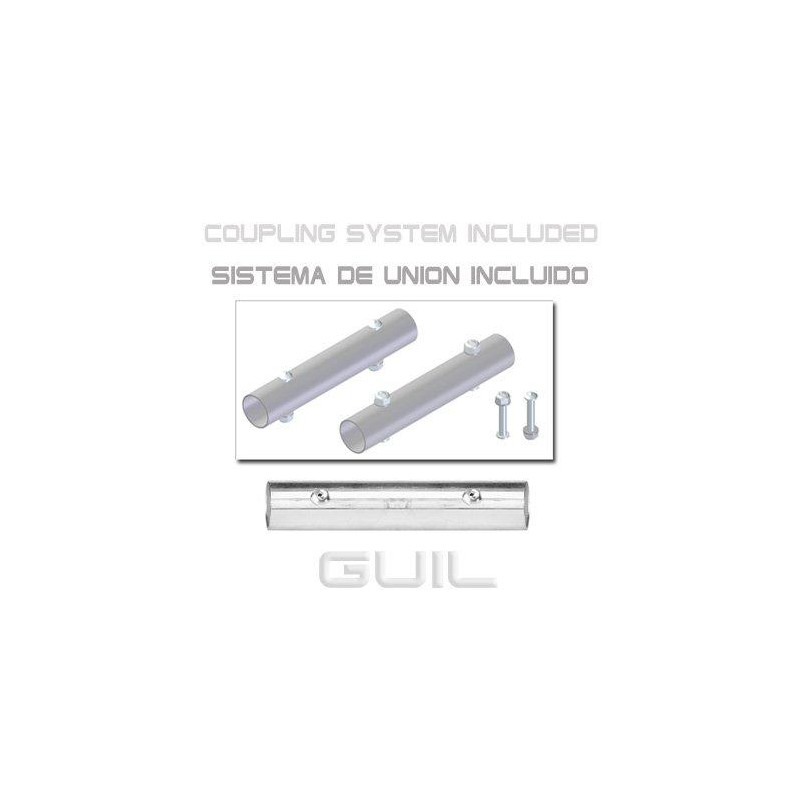

The truss connection is made using the UTR-01 coupling system, which allows a quick, easy and reliable assembly.
Note: Each TP300-A two way corner comes complete with the UTR-01 coupling system included.

TP300 series offers a flexible, reliable and visually attractive solution for many applications like:

* Trade show booths
* Conferences
* Decoration purposes (shop fitters, architectural and interior design..)
* Theatres, Night clubs
* Exhibitions
* Staging applications
