Guil - TP300-B/D

TP300-B/D

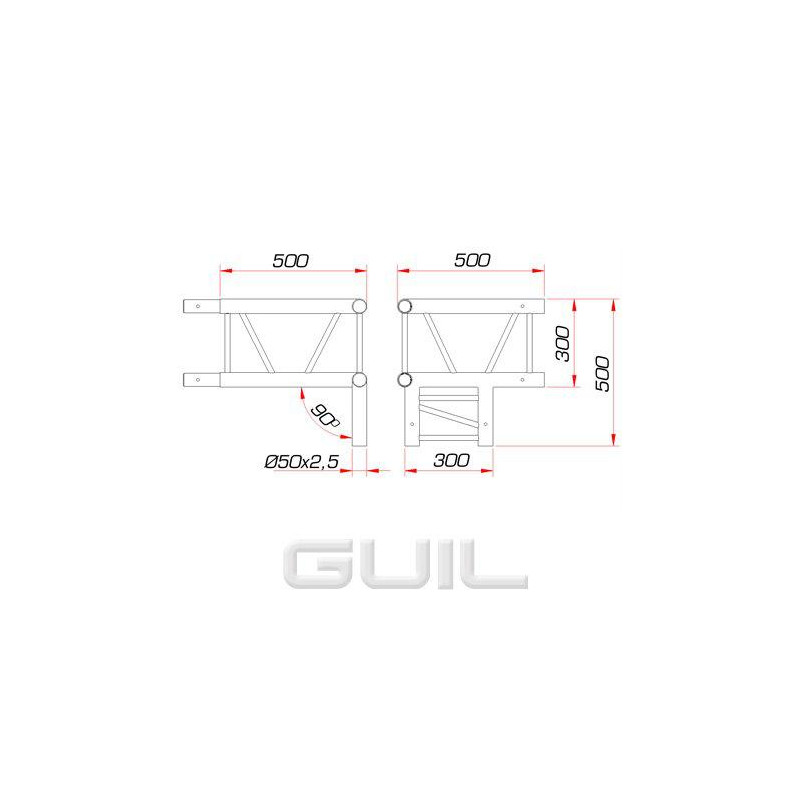

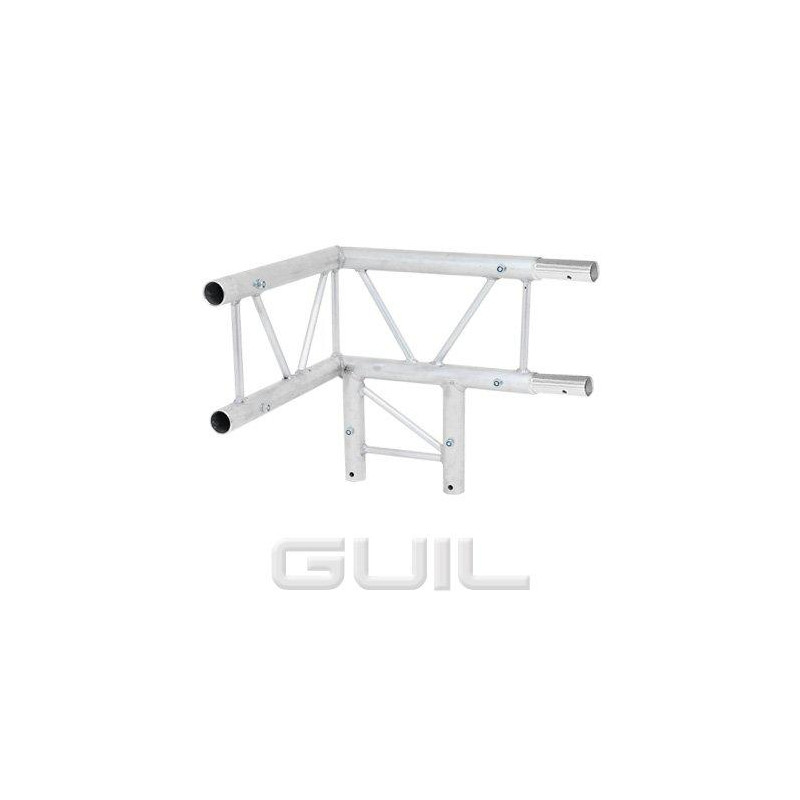

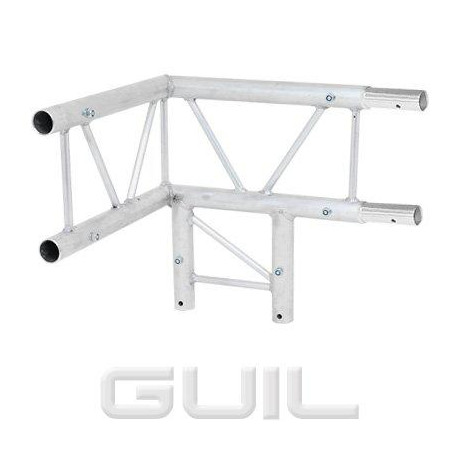

TP300-B/D 90º corner block with one extra face down (right position) (parallel truss ø 50 x 2,5 mm)

In Stock

More info

T300-B/D is a 90º two way corner with one extra face down for TP300 series (right position), manufactured from extruded aluminium tube (Alloy: EN-AW 6061 T6 according to the security norm UNE-EN573) and TIG welded (continuous cord) for a maximum resistance.

- Wall main tubes with 50 mm x 2,5 mm
- Braces/Diagonals with 18 mm x 2 mm braces/diagonals

Features:

Net Weight: 3,72 kg
Colour: Polished Aluminium

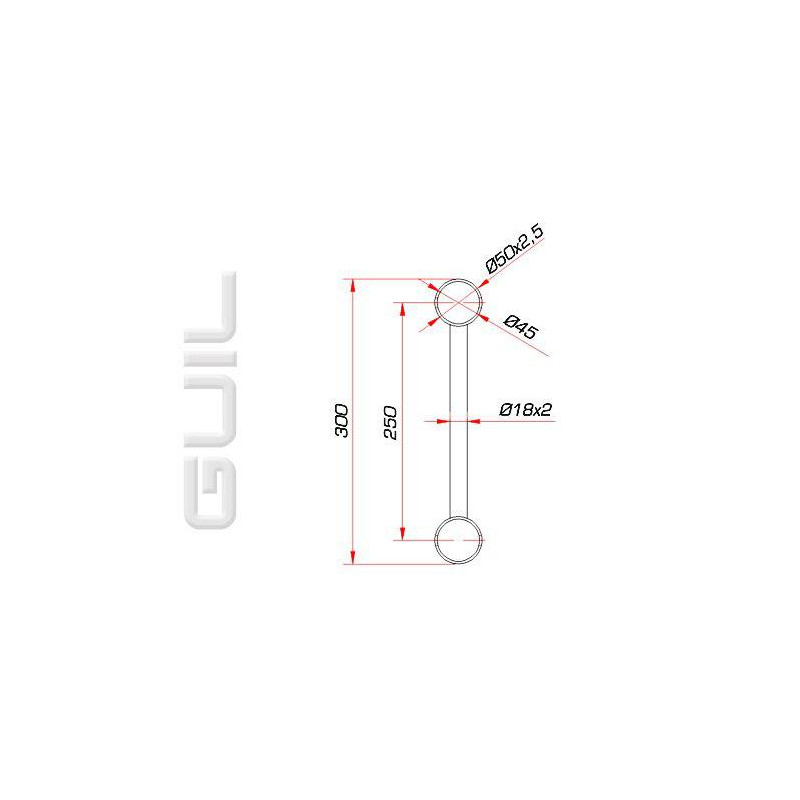

Main Tubes: Ø 50 x 2,5 mm
Braces: Ø 18 x 2 mm
Material: Aluminium
Alloy: EN-AW 6061 T6
Standards: DIN 4113; BS 8118



T300-B/D is a 90º two way corner with one extra face down for TP300 series (right position), manufactured from extruded aluminium tube (Alloy: EN-AW 6061 T6 according to the security norm UNE-EN573) and TIG welded (continuous cord) for a maximum resistance.

- Wall main tubes with 50 mm x 2,5 mm
- Braces/Diagonals with 18 mm x 2 mm braces/diagonals

TP300-B/D corner is part of the full range of corners and accessories designed to set up multiple configurations with the TP300 Parallel Truss.

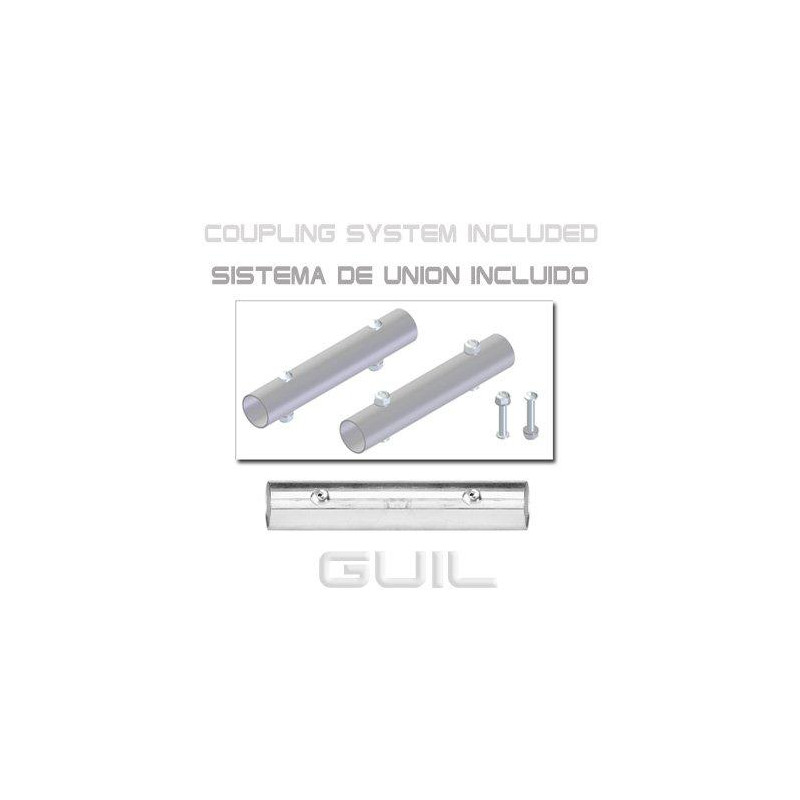

The truss connection is made by the UTR-01 coupling system, which allows a fast, quick and reliable assembly.
Note: Each TP300-B/D 90º two ways corner with one extra face down comes complete with the UTR-01 coupling system included.

TP300 series offers a flexible, reliable and visual attractive solution for many applications like:

* Trade show booths
* Conferences
* Decoration purposes (shop fitters, architectural and interior design..)
* Theaters, Night clubs
* Exhibitions
* Staging applications
