Lifting Bracket to ensure reliable truss suspension and elevation by means of motor, hoist, crane...
TS-AD1 bracket is a very useful complement; its 2 points of truss attachment offer maximum stability when the truss structure is hung and give better control to the motor operator when the truss is being moved into the position where the truss has to be placed.

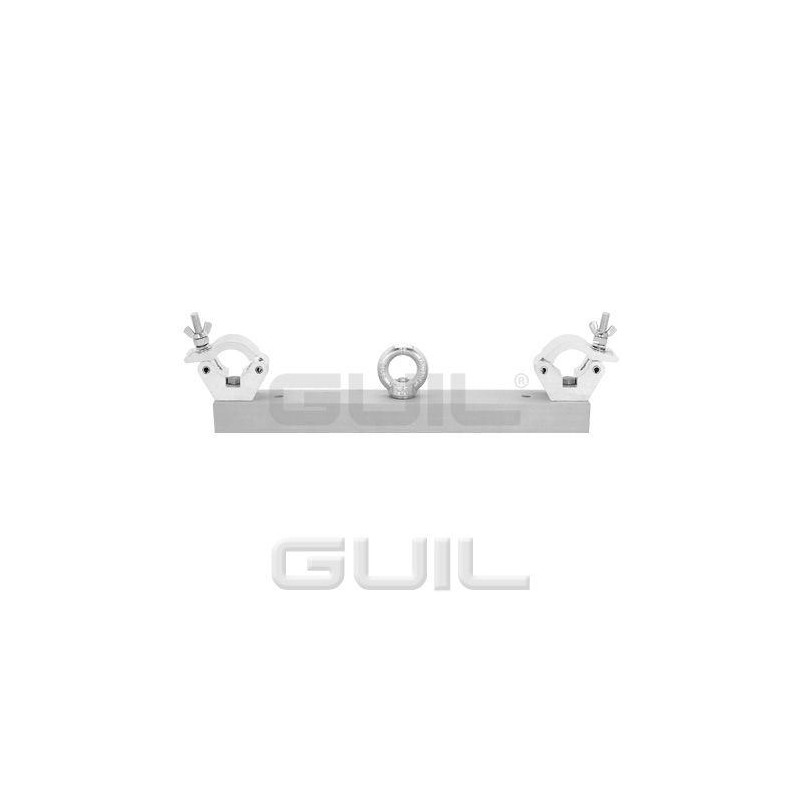

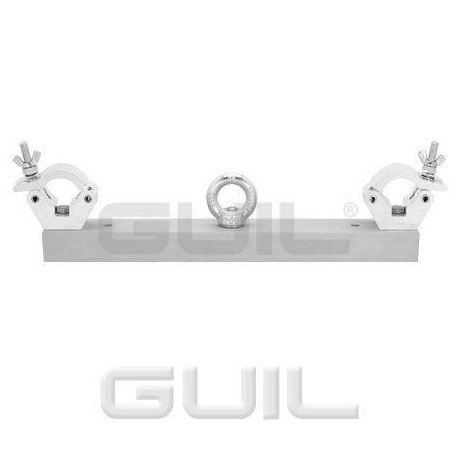

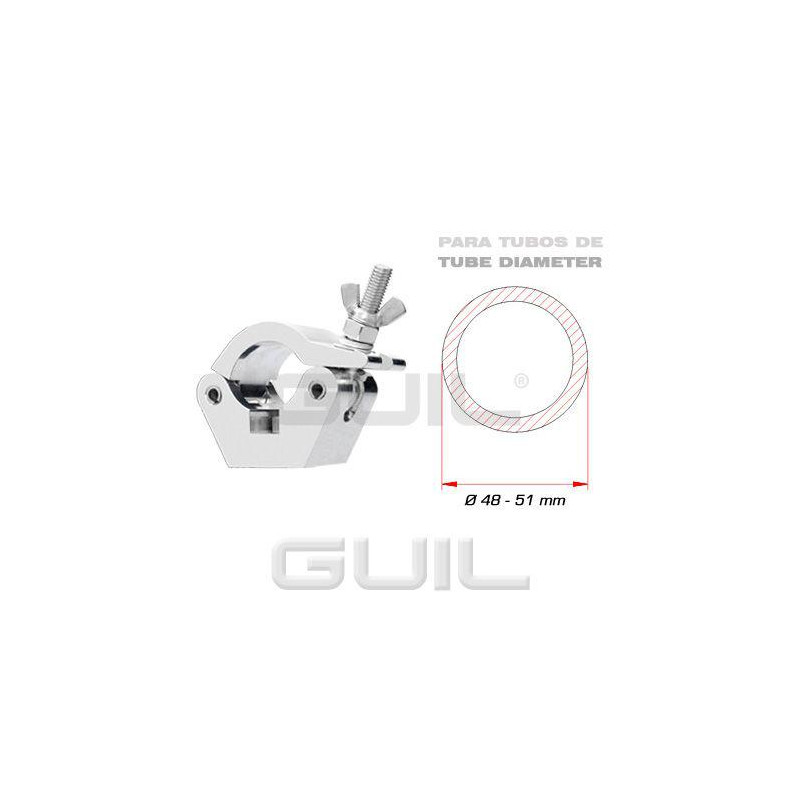

It is composed by two detachable aluminium clamps ABZ-03 (for ø 48 to 51 mm tube barrels) and reinforced bar with eye nut M20.

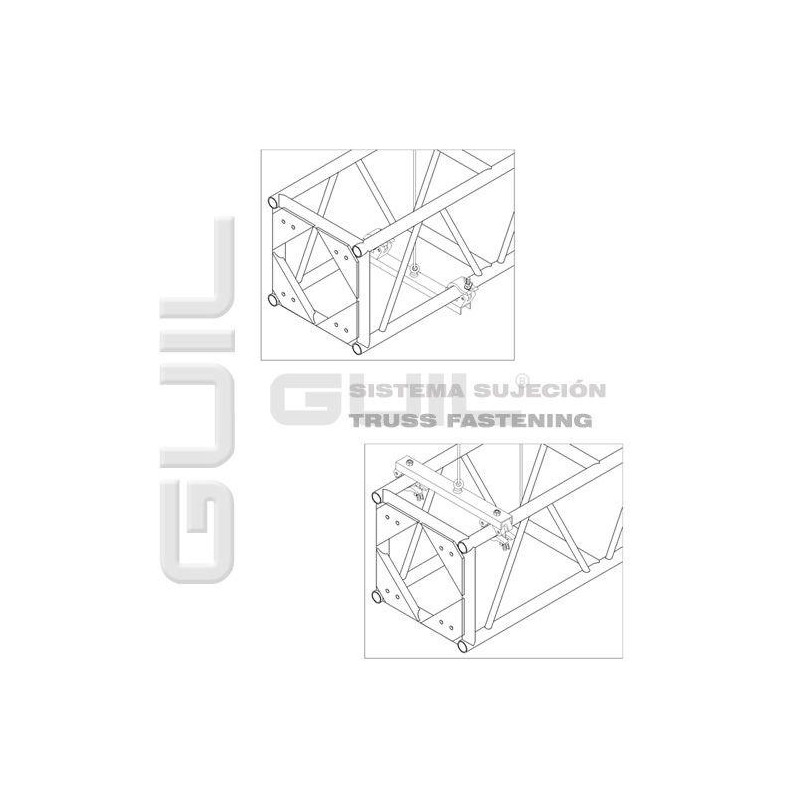

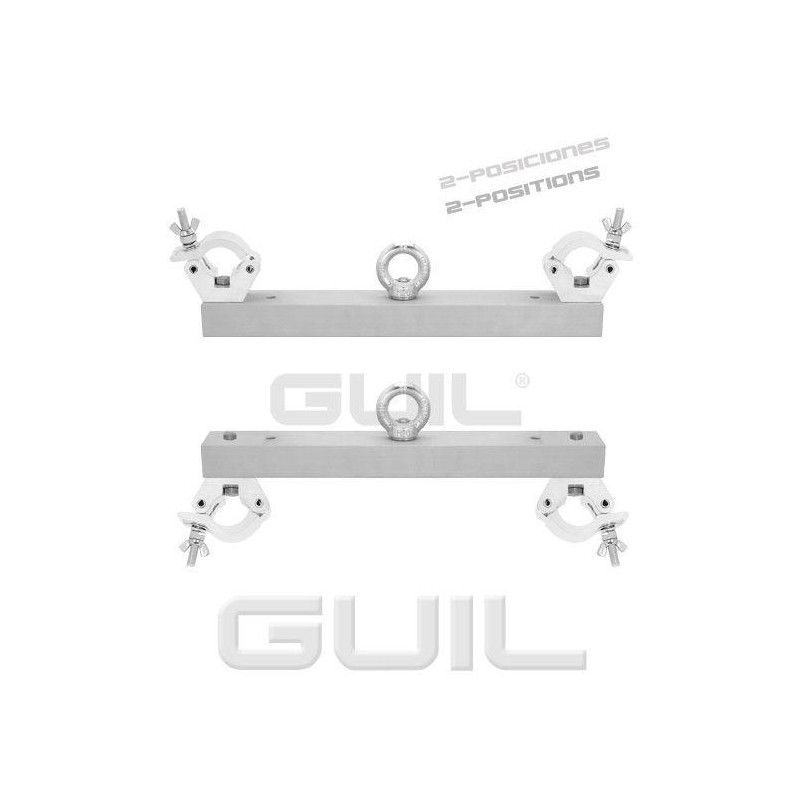

The special bracket design allows two different truss attachment positions becoming a perfect solution for permanent or semi-permanent installations.

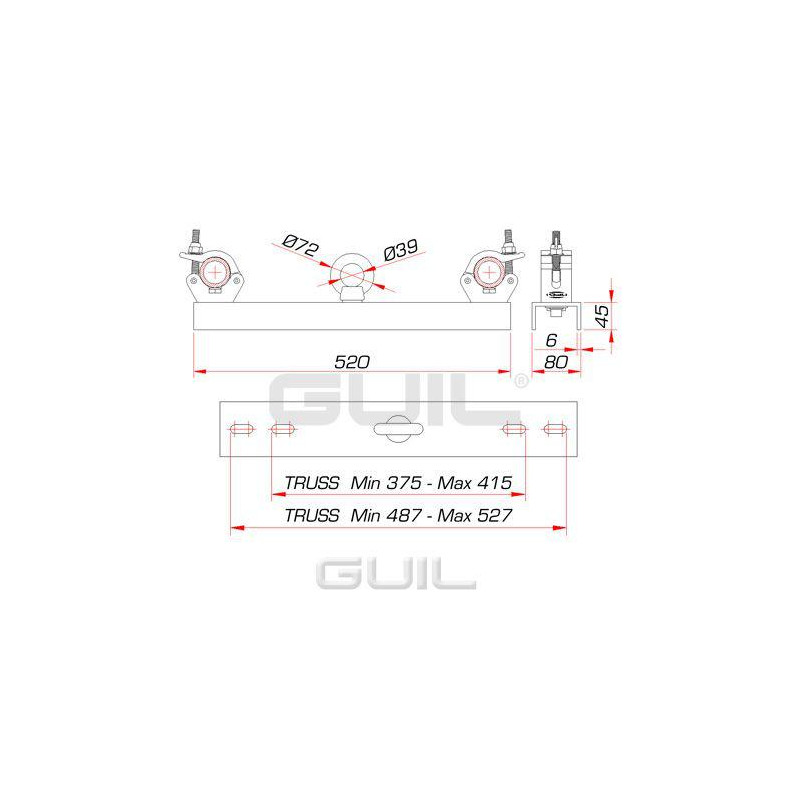

TS-AD1 bracket has been developed to be used with trussing from 375 mm to 415 mm and from 487 mm to 527 mm.
