Guil - TTL-01

TTL-01

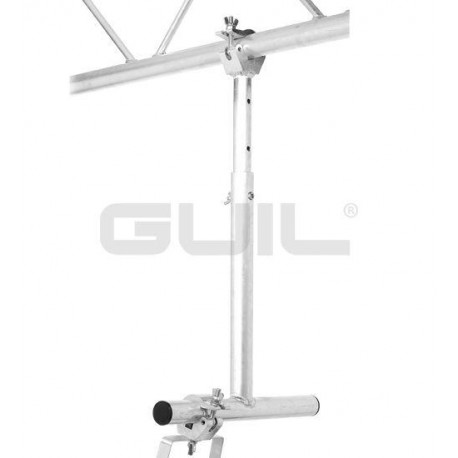

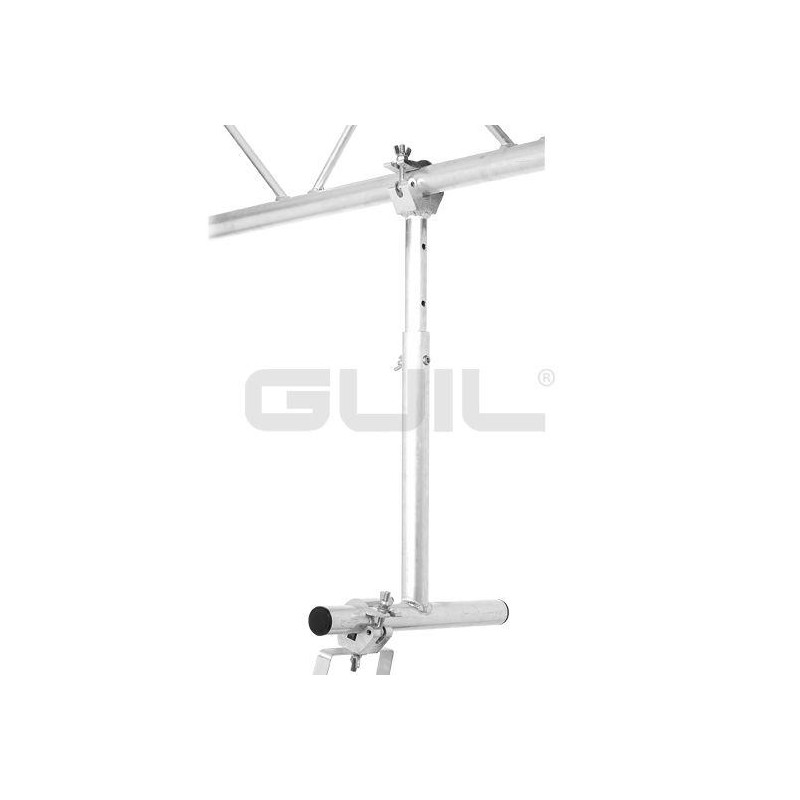

“T”-shape aluminium telescopic arm with ABZ-24 aluminium coupler

38,00 €

-

In Stock
Ready for dispatch

More info

Specifications:

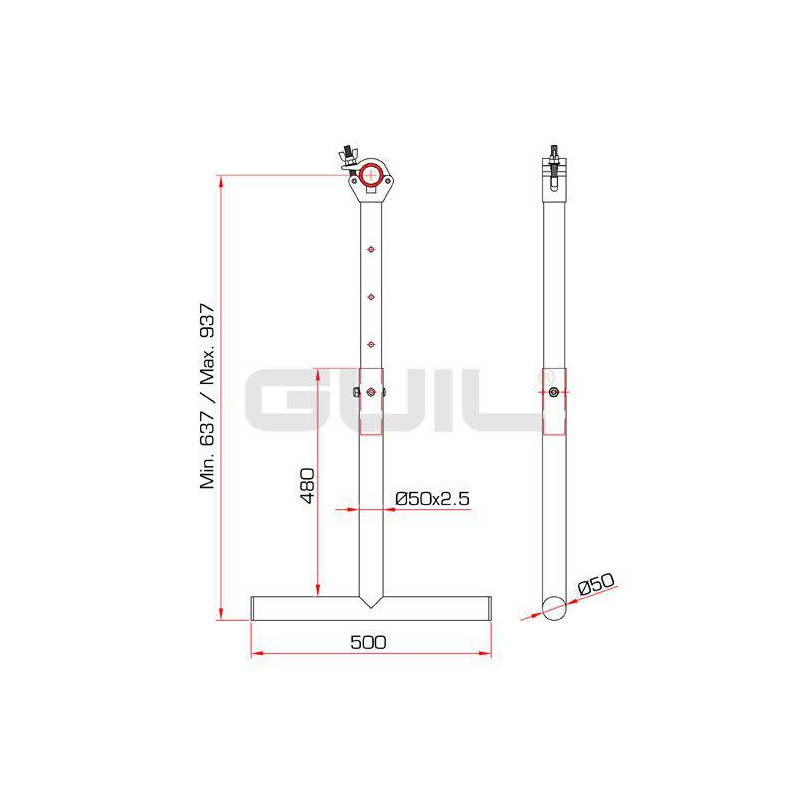

  • Measurements: 670 x 500 x 50 mm
  • Maximum Load: 100 kg
  • Net Weight: 2,00 kg
  • Adjustable: Yes
  • For Diameters of: 48 a 51 mm
  • Main Tubes: Ø 50 x 2,5 mm
  • Insertion tube size: Ø 45 x 2 mm
  • Material: Polished Aluminium
  • Alloy: EN-AW 6082 T6
  • T-shape, boom arm, Ø made of aluminium 50 mm by 2,5 mm thick.

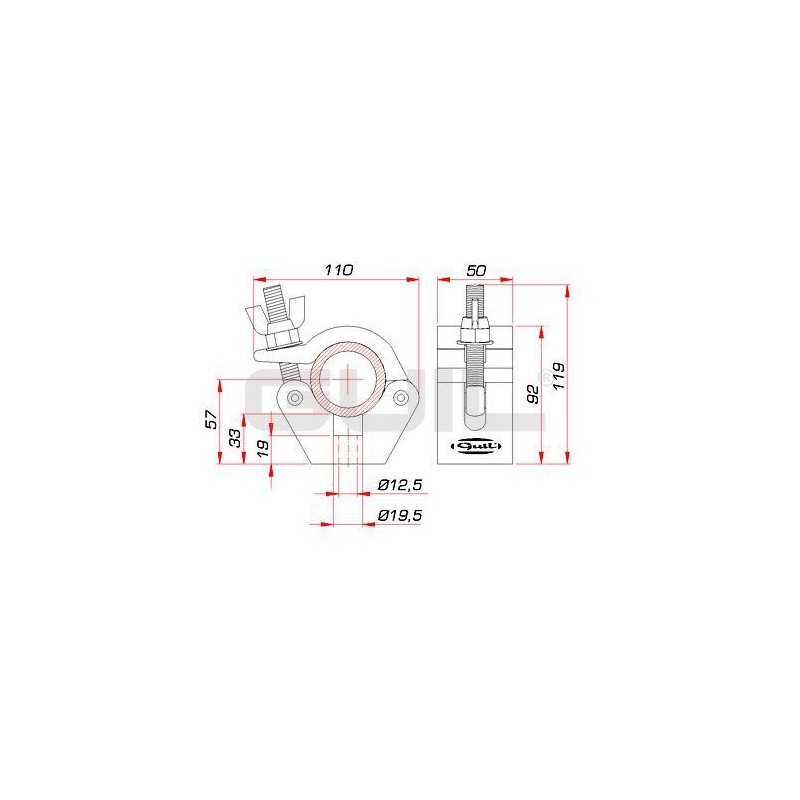

  • An aluminium injected, heavy-duty clamp (ABZ-24) is wielded to the boom arm.

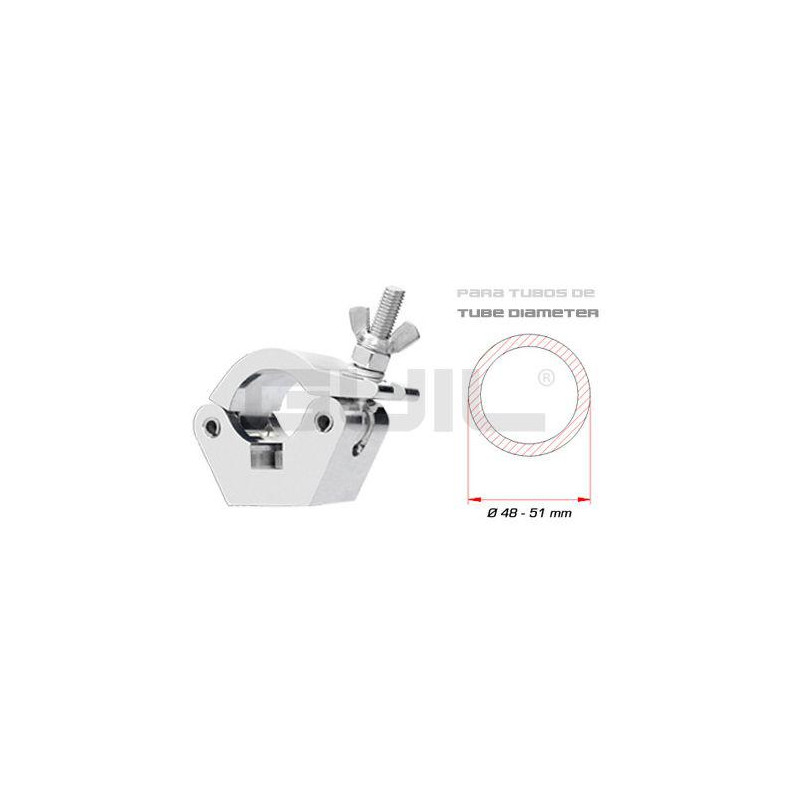

  • Suitable for tubes with an external diameter that goes from 48 to 51 mm.

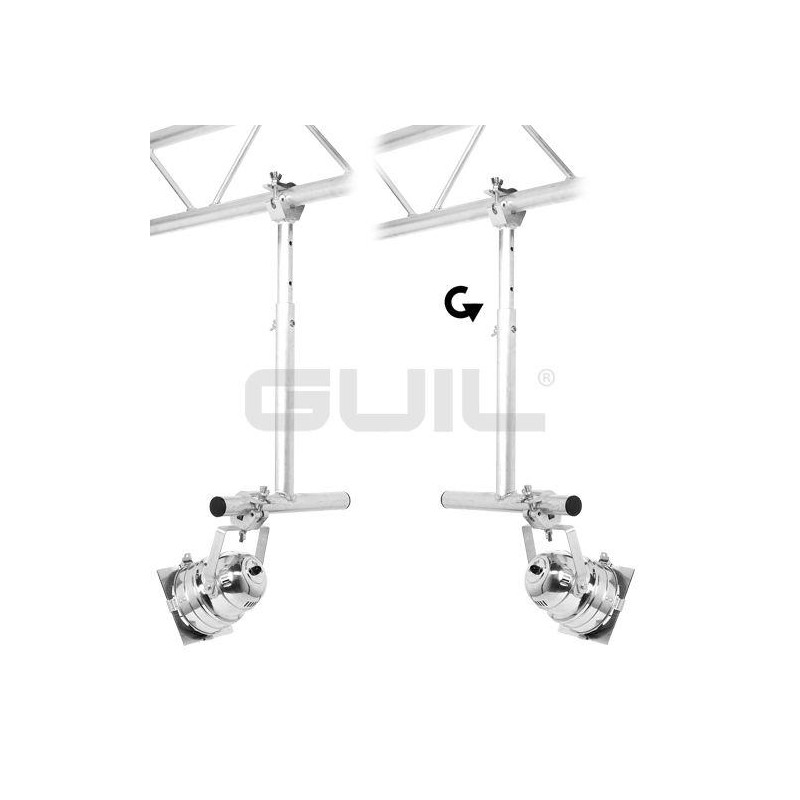

  • Multi-purpose extendable boom arm.
  • It can be fixed in four different positions with a safety bolt (637 mm - 737 mm - 837 mm - 937 mm).
