Guil - TTL-02

TTL-02

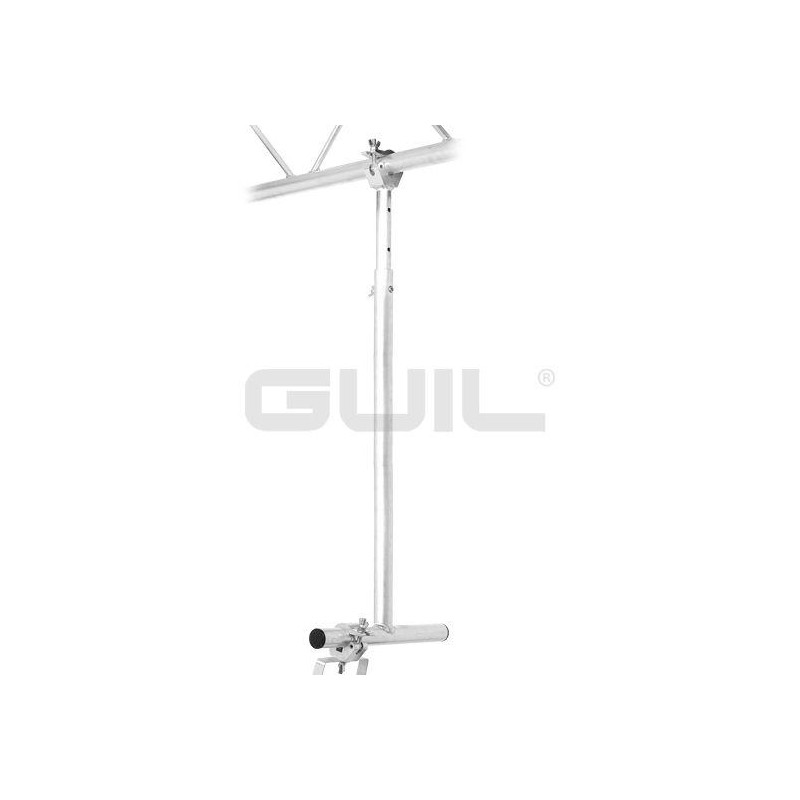

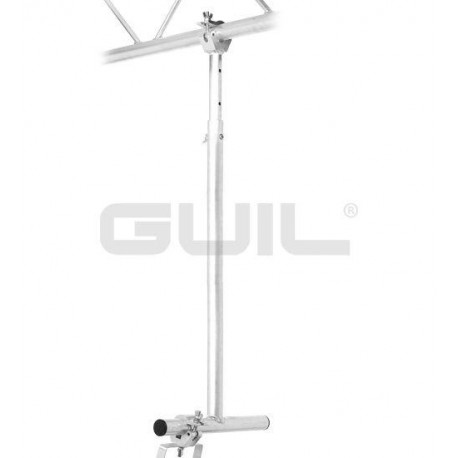

“T”-shape aluminium telescopic arm with ABZ-24 aluminium coupler

81.20€%6.40 You save 5.20€
76,00 €

Add to wishlist

In Stock

Europe Warehouse: 0
Spain Warehouse: 2

More info

Specifications:



  • Measurements: 1130 x 500 x 50 mm
  • Maximum Load: 100 kg
  • Net Weight: 3 Kg
  • Adjustable: Yes
  • For Diameters of: 48 a 51 mm
  • Main Tubes: Ø 50 x 2,5 mm
  • Insertion tube size: Ø 45 x 2 mm
  • Material: Polished Aluminium
  • Alloy: EN-AW 6082 T6
  • T-shape, boom arm, Ø made of aluminium 50 mm by 2,5 mm thick.

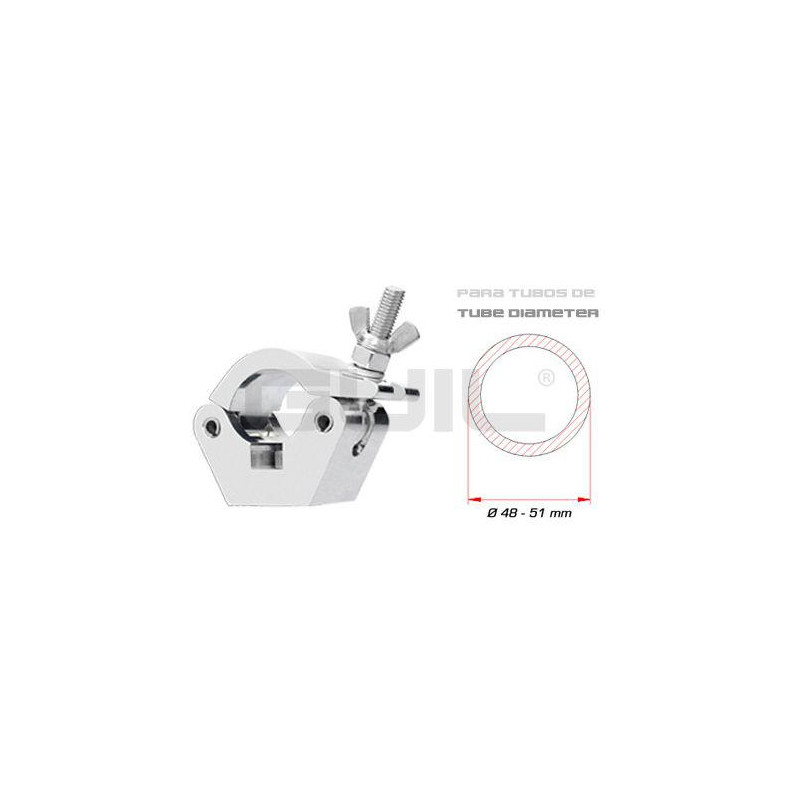

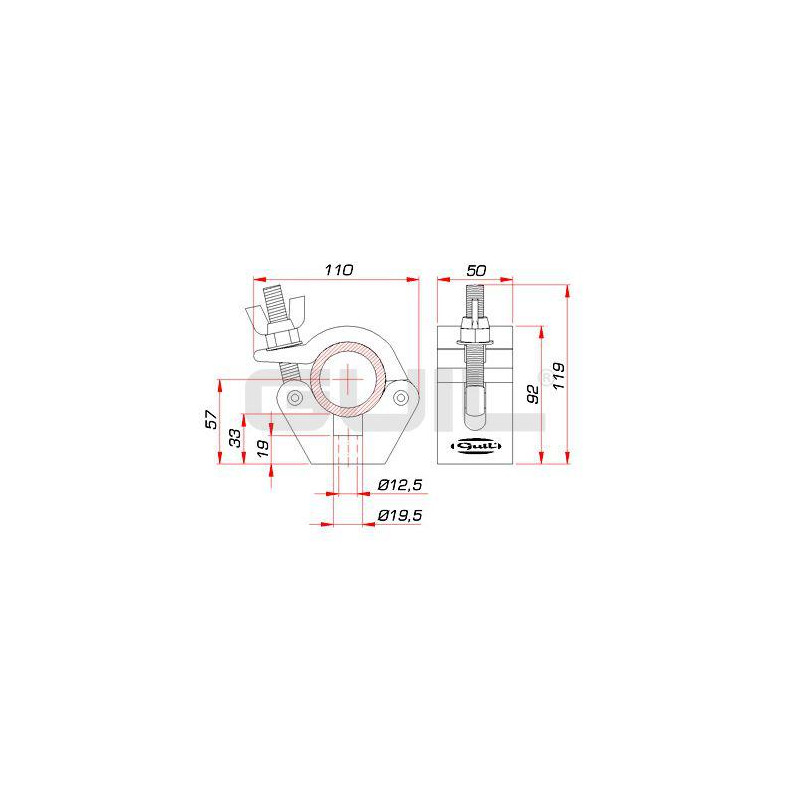

  • An aluminium injected, heavy-duty clamp (ABZ-24) is wielded to the boom arm.
  • Suitable for tubes with an external diameter that goes from 48 to 51 mm.
  • Multi-purpose extendable boom arm.

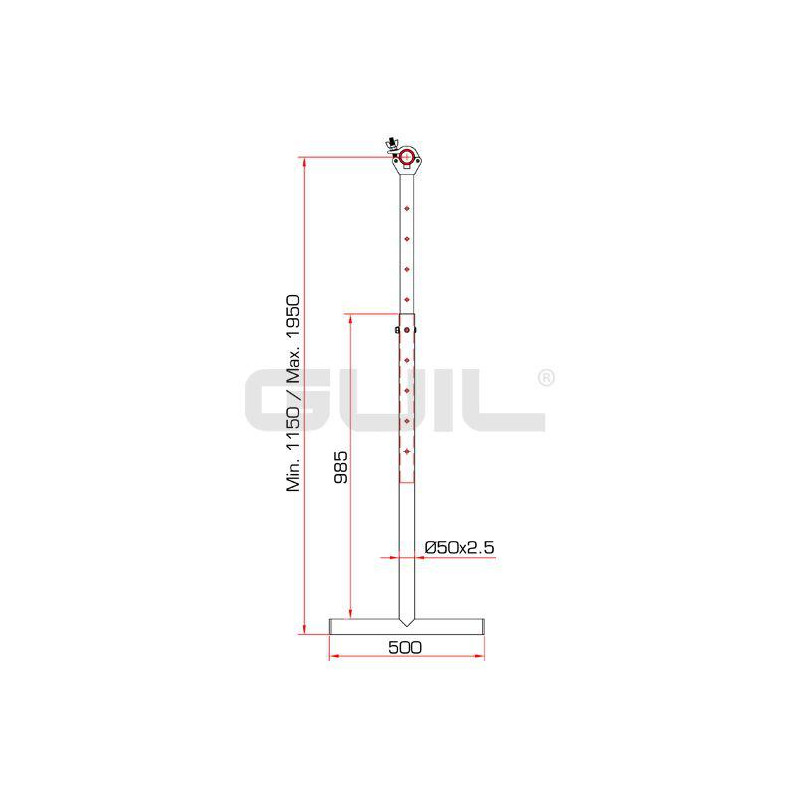

  • It can be fixed in nine different positions with a safety bolt (1150 mm – 1250 mm – 1350 mm - 1450 mm – 1550 mm – 1650 mm – 1750 mm – 1850 mm – 1950 mm).
