Guil - ULK 650

ULK 650

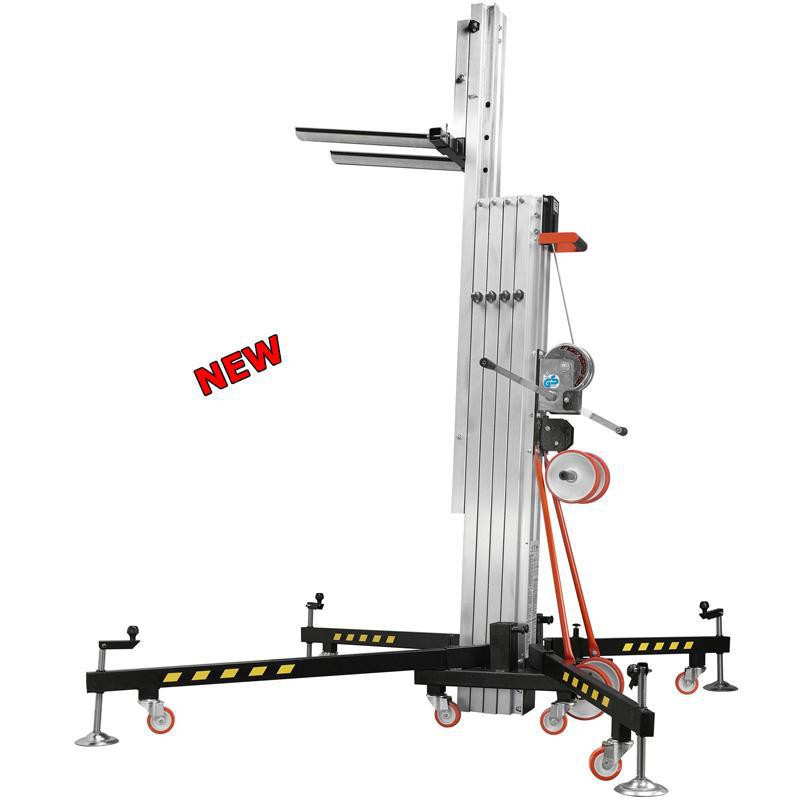

Lifting tower. Maximum height: 6.50 m

3 000,52 €

Add to wishlist

In Stock

More info

Lifting towers developed for loading heavy weights at a great height. Its user friendly, compact design and great resistance, make the ULK Lift an ideal complement for any kind of event.


Features:

Maximum Height: 6,50 m
Maximum Load: 250 kg
Minimum Load: 20 kg
Net Weight: 188 kg
Loading Height: 34 cm

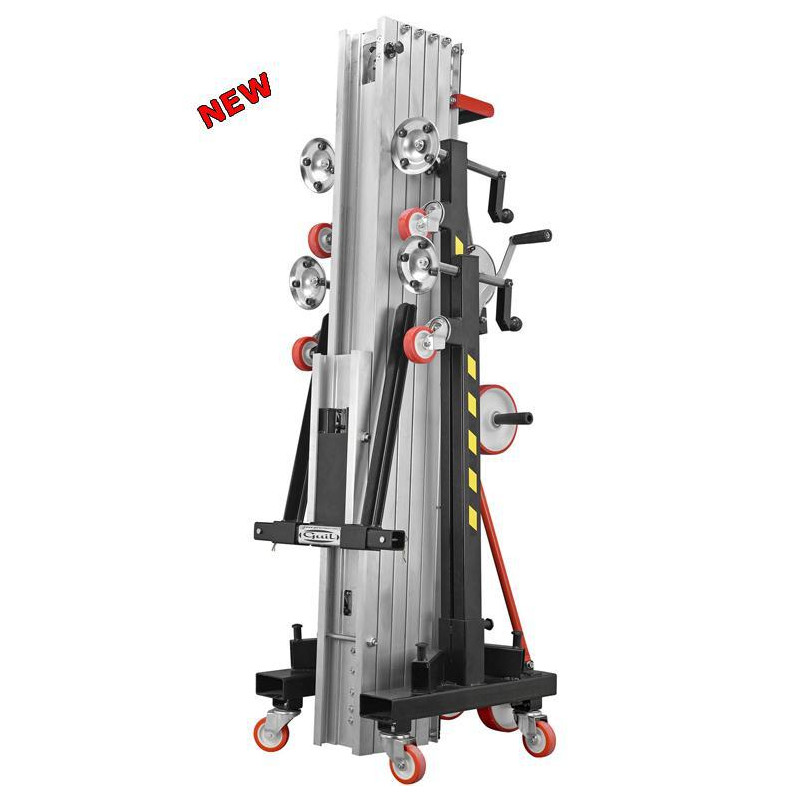

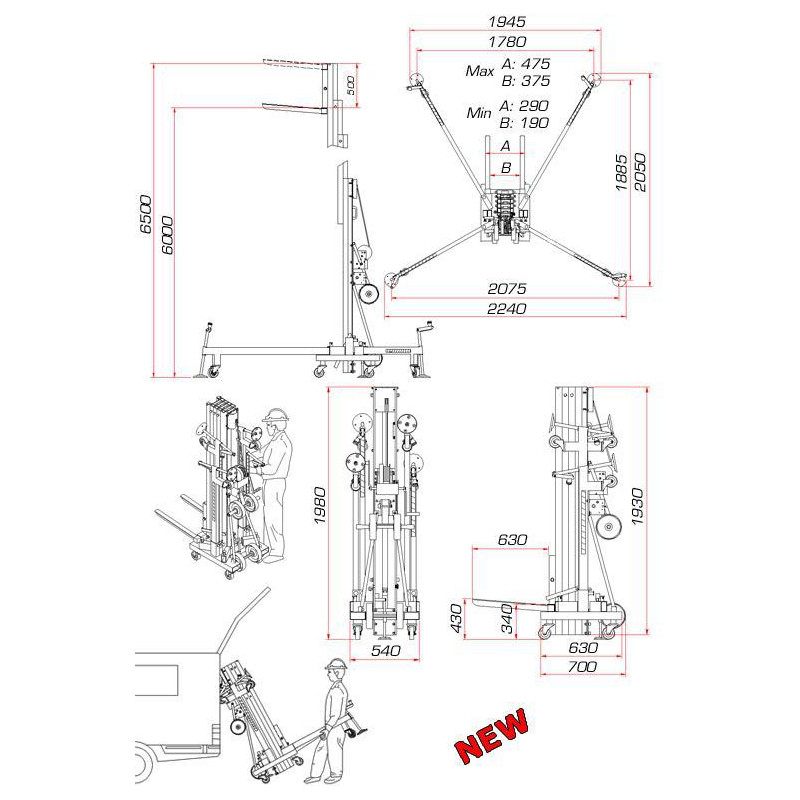

Folded Dimensions: 540 x 700 x 1980 mm
Material: Aluminium & Steel
Alloy: EN-AW 6005 T-6
Welding Process: TIG/MIG
Complies with: BGV C1 , 2006/42/EC , DIN 56921-11 , DIN 4113-1

Safety Measures

ULK 650 is equipped with three safety systems to guarantee maximum reliability and resistance:

1.- It is provided with a BULL500/2 hand winch with automatic braking system. Load remains in position whenever the handle is released.

2.- Zip/Trigger safety system with slots by means of which in the extreme case of cable breakage, the safety trigger would automatically slide into one of these slots, blocking the load and stopping it from falling (avoiding any displacement).

3.- It has a Internal Pendulum System which is automatically activated when one of the sections has a small fall, and unblocked by a trigger on each section. This system will work as a last resort in the unlikely event of cable breakage or the external safety system failing.

Lifting Process

For a quick, safe and comfortable lifting process our ULK Towers are equipped with a BULL500/2 hand winch (provided with two cranks) with automatic braking system, which stops the load at the desired height when handles are released. This winch is certified for a maximum lifting load of 500 kg (1102.31 lb) and a maximum pulling load of 1700 kg (3747.86 lb)  (In compliance with standards: BGV C1 and 2006/42/EC). BULL500/2 brake winch, specially designed for lifting heavy loads, is provided with two detachable cranks in order to avoid any manipulation during the event and to offer easy and convenient transport and storage.

Mast Section

Lifting Tower made out of extruded aluminium sections (Alloy: EN-AW 6005 T6 in accordance with standards UN-EN573/UNE-EN 12020-2). These sturdy sections are extended by means of pulleys with ball bearing and an anti-torsion Ø6 mm (0.24") galvanized steel wire (Construction: 6x37+1), specially manufactured for lifting heavy loads (DIN 3060).

Forks

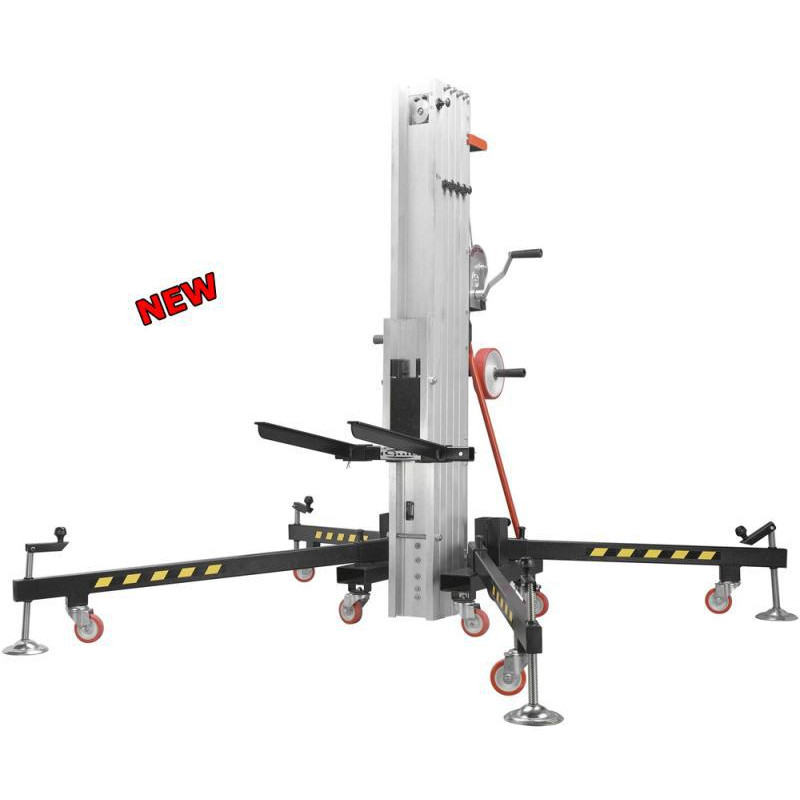

ULK Lifts are fitted with detachable steel forks (630 x 50 x 50 mm / 2'0.80" x 1.97" x 1.97") ref. HR-01, and has a resting height of 34 cm (13.38")( from the floor which makes its loading effortless.
The forks have been manufactured with a special reversible design to be able to fix the forks in two different heights, gaining more height when fully extended. The forks also have 2 width positions to adjust to all trussing types.

Base Section

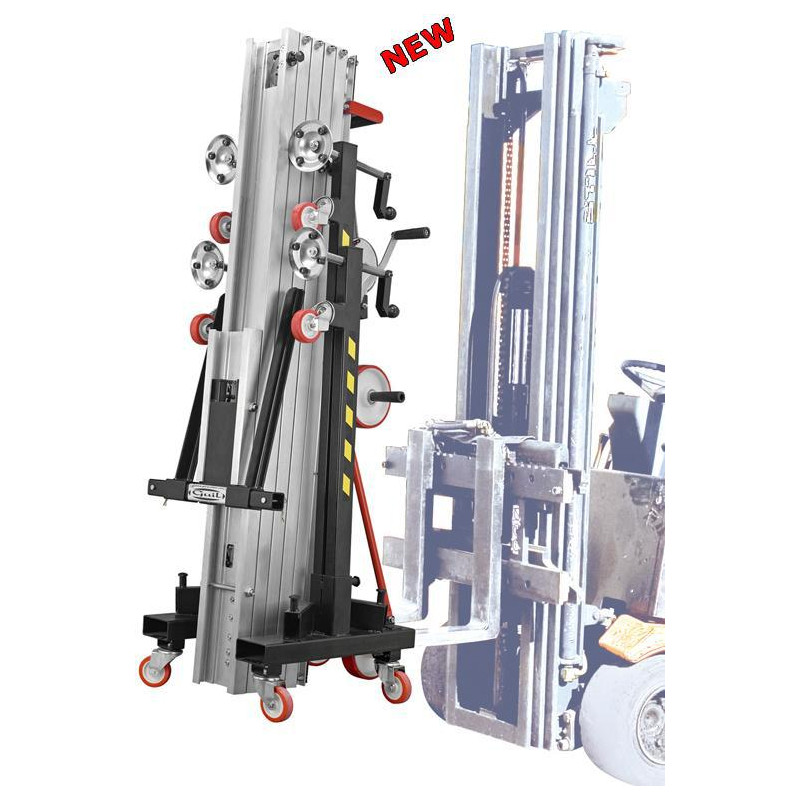

Compact base (700 x 540 mm / 2'3.56" x 1'9.26") manufactured in sturdy steel (ST52-3 DIN-2393) and finished in a textured black powder coating (Epoxy) special for outside use (preventing rusting problems). It is provided with a spirit level, for a proper vertical adjustment of the tower and four heavy-duty swivel castors (Ø100 mm / 3.94"), for easy handling. The sturdy base is specially designed so that these lifts can be used in conjunction with forklift trucks. Its four detachable legs, manufactured with reinforced steel, are provided with four heavy-duty swivel castors (Ø 100 mm / 3.94") which make it easy to manoeuvre. Legs come complete with leveller screw jacks with reinforced spin handles (ergonomic design) with double thread and speed which facilitate the levelling task. Their non-slip foot plates (Ø 150 mm / 5.90") ensure a perfect adjustment of the tower to the floor surface.  The base is also provided with steel mast braces for greater lift stability and also to protect the aluminium mast sections when the lift is being moved horizontally.

Transport

In order to ease its horizontal moving and its loading in vehicles, the ULK Towers have four heavy-duty castors (Ø 200 mm / 7.87"), two of them placed in the base and another two castors under the brake winch which also protect the winch against damages. ULK Lifts are supplied with a quick acting sling to block the lift sections and guarantee safe handling.

ULK-A1 Adapter

Special adapter with a Ø14 mm (0.55") quicklink to lift Line Array Systems. It is easily fitted on to the forks for an easy and reliable Line Array installation.

Maximum Safety

ULK Lifts comply with current safety standards: BGV C1, 2006/42/EC, DIN 56921-11, DIN 4113-1 guaranteeing maximum safety and resistance, complying with the lightweight,   sturdiness and manoeuvrability requirements needed to lift audio equipment. Thanks to its easy handling and its simple and quick assembly, ULK Lift can be considered as one of the most convenient and functional lifts on the market.

Note: For outdoor assemblies, the tower must be secured with slings, wires, strings.. in order to avoid movement caused by windy conditions and guarantee maximum stability.

IMPORTANT: THE LIFT IS NOT TO BE USED AS A HOIST FOR LIFTING, SUPPORTING OR TRANSPORTING PEOPLE.

PRODUCT MANUFACTURED IN E.U.
