Laserworld - EL-60G

EL-60G

Green single color laser system with a total output power of up to 60mW.

90,00 €

-

In Stock
Ready for dispatch

More info

Specifications:

The Laserworld EL-60G is a green single color laser system with a total output power of up to 60mW.

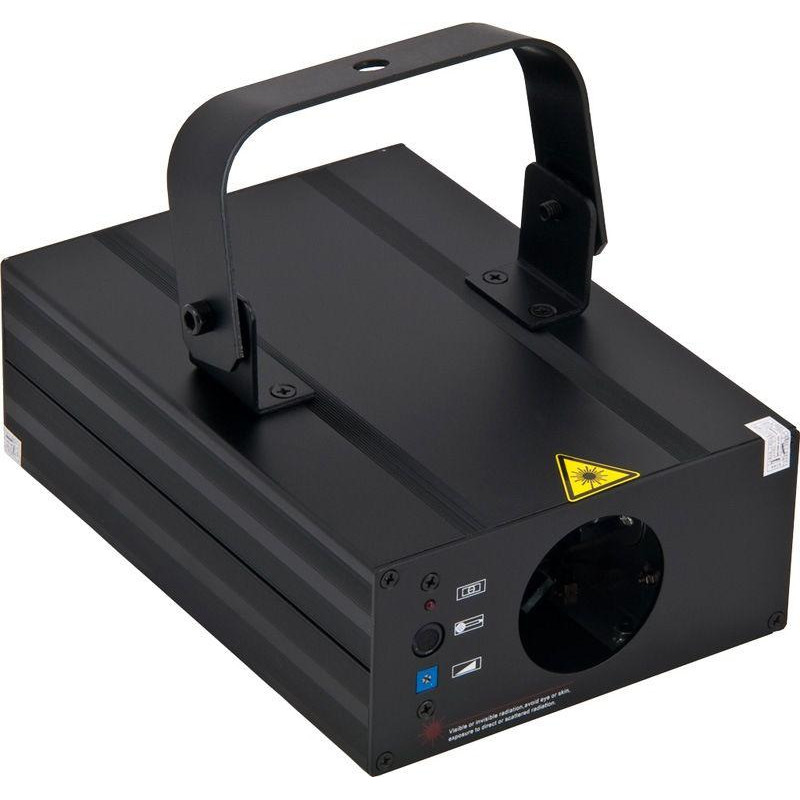

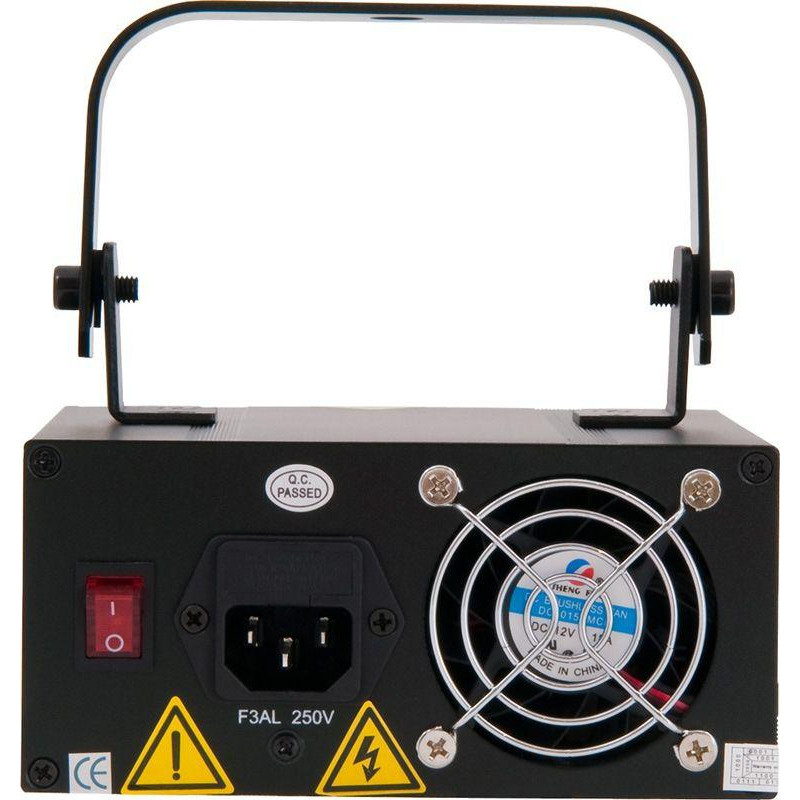

The green DPSS laser module with a wavelength of 532nm ensures a high visibility and brightness. At the same time the projector has good beam specifications with a beam diameter of 3mm and beam divergence of 1.5mrad and it offers high-speed stepper motors with 2-5kpps as well as a scan angle of up to 30°. Approximately 50 preset basic patterns, like layers, tunnels, fences, waves etc. are available in the sound-to-light mode. For this mode the sensitivity of the integrated adjustable microphone can be altered. There is an on-off switch at the rear side of this very compact device.

The Laserworld EL-60G is a very affordable solution for first-time users and it is often used in bars, small clubs, at private parties or home use.

Technical Specification:

  minimum maximum
total power:40mW60mW
power green:>40mW / 532nm

beam specifications:ca. 3mm / 1,5mrad
laser source:DPSS
laser class:3b
operation modes:music mode
scanner:high-speed stepper motors, up to 2-5kpps
scan angle:+/- 30° max.
basic patterns:ca. 50 (layers, tunnels, fences, waves, etc.)
accessories:power cable, manual
power supply:85V - 250V AC
power consumption:40 W
dimensions:205/145/70 mm
weight:1,4 kg

Warning: every device that includes a laser diode, needs to be shut down for at least 10 minutes for every 2 hours.  In case of not following the given instructions, the laser diode may burn out and won't be accepted as a reason for warranty.
