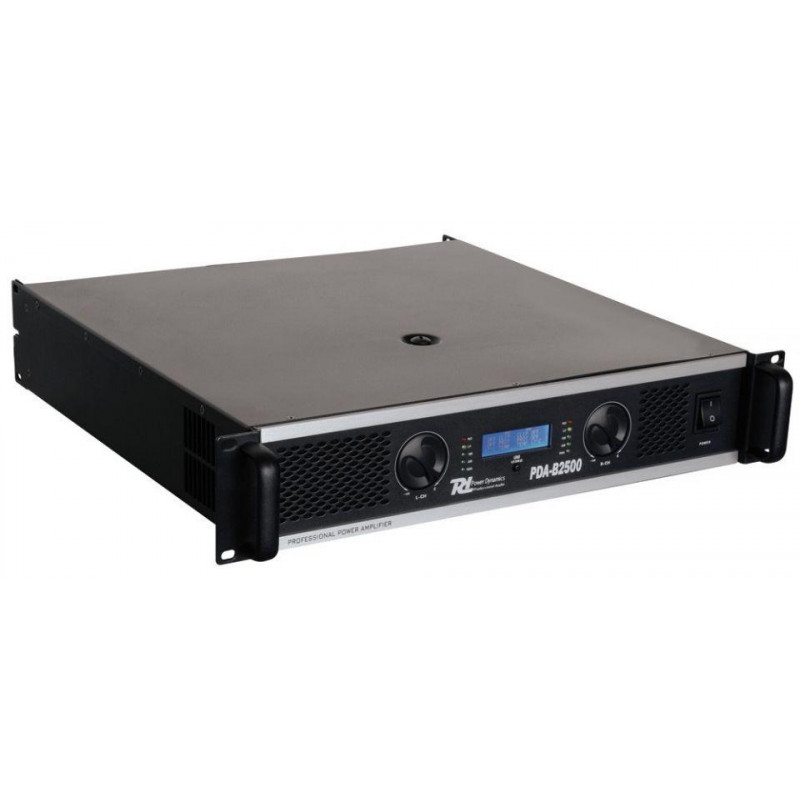

Power Dynamics - PDA-B2500

PDA-B2500

Professional Amplifier

In Stock

Europe Warehouse: 1

More info

Output power: 8 Ohms 2x 800W (rms)

Output power: 4 Ohms 2x 1200W (rms)

Output power: 2 Ohms 2x 1700W (rms)

Output power: bridged 8 Ohms 2400W (rms)

Output power: bridged 4 Ohms 3200W (rms)



Specifications:

Amplifiers for professional use fitted with strong front panels. With integrated 2-way crossover network and limiter. Very versatile due to high power reserves and silent cooling fans. A robust construction suitable for heavy duty usage: DJ's, fixed installations and live performance.

  • 2 Ohm reliable

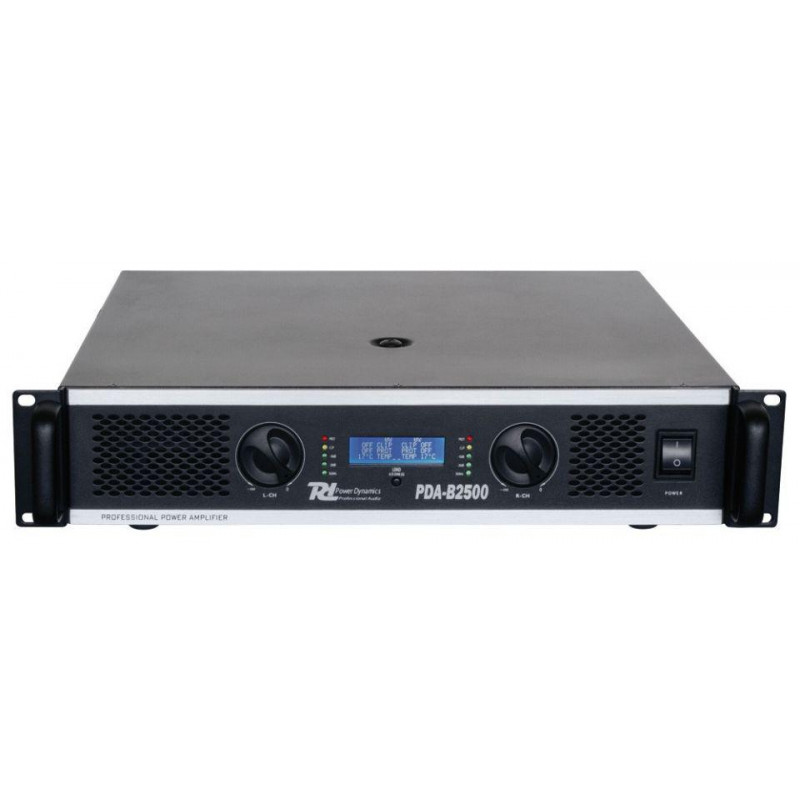

  • Blue LCD display for temperature, operating mode, power, protection and audio level
  • Signal, overload and bridge LED indicator on each channel
  • Automatic clip limiting and Ground lift function
  • Soft-start function
  • Innovative heatsink with temperature-controlled fans
  • Adjustable crossover network: 45-960 Hz / 450-9600 Hz
  • Switchable high-pass and low-pass filter
  • Suitable for 19" rack mounting (2U)
  • Protected against short circuits, overload and heat
  • Stereo, parallel and bridge mode
  • High power output and excellent sound quality



Frequency response10Hz - 20kHz (± 1.5dB)

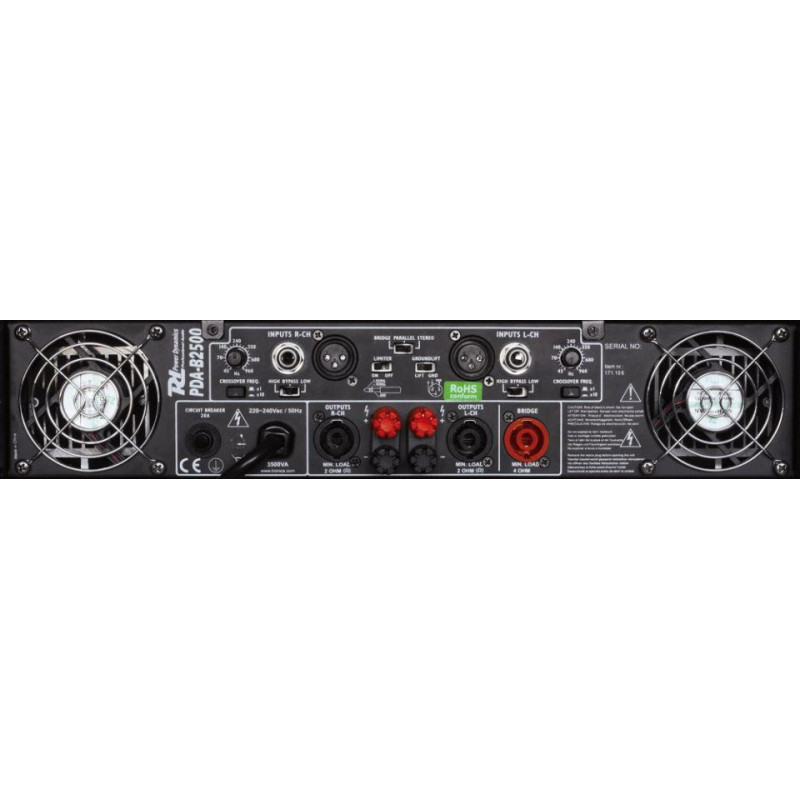

InputXLR, 6.3mm jack
Signal to noise ratio>95dB
Damping Factor>500
Slew Rate60V/uS
Crosstalk>105dB
Input sensitivity775mV
Input impedance20kOhm
ConnectorBinding posts & 4P Speakon
Power Supply220-240Vac, 50Hz
Dimensions482 x 89 x 475mm (19" x2U)
Weight22.1kg
