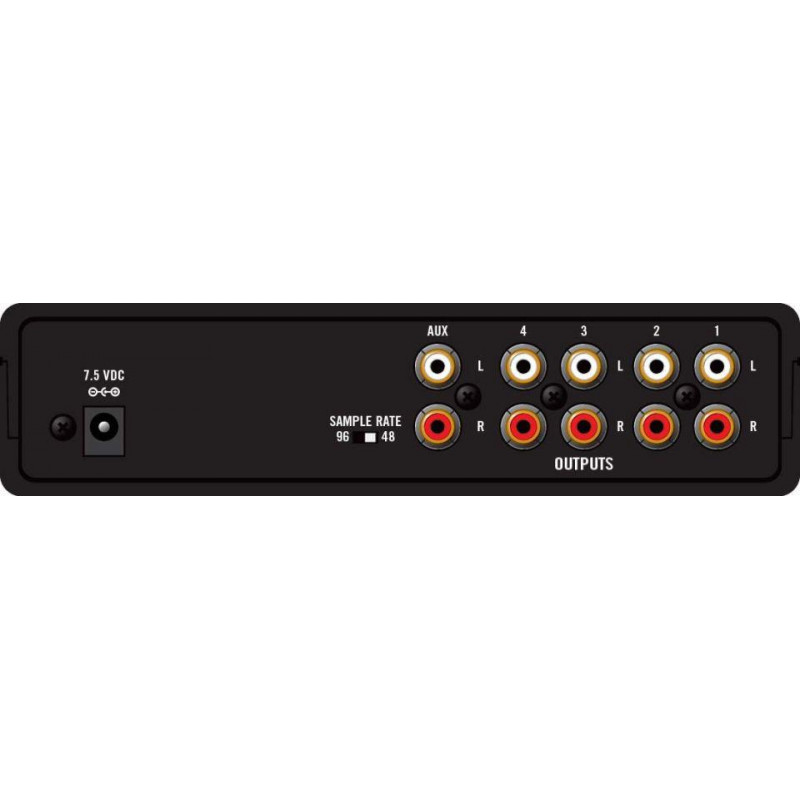

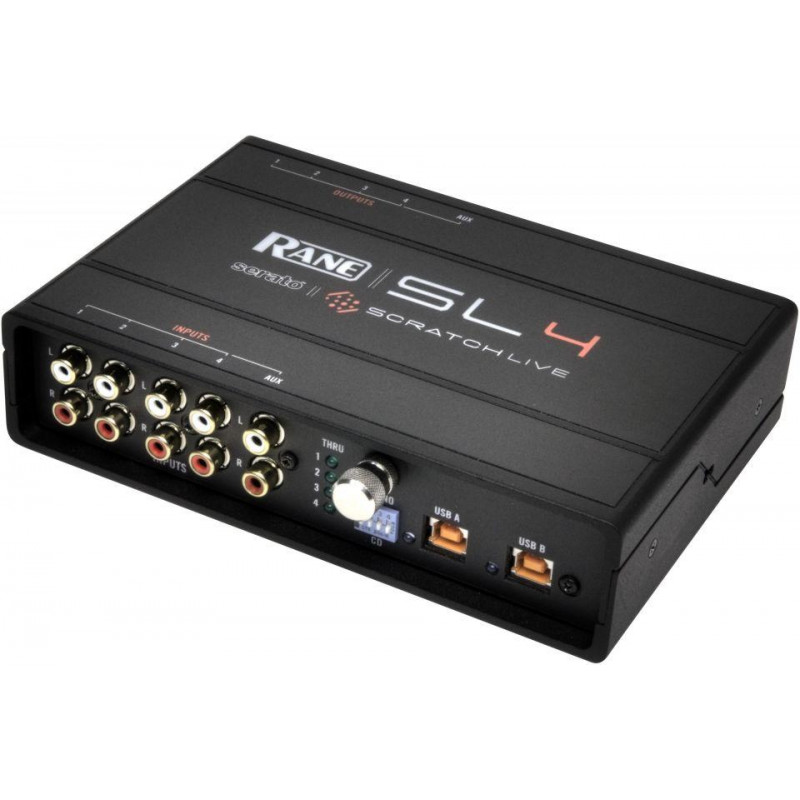

Rane - SL4

SL4

Serato Scratch Live SL4 with 2xUSB port

In Stock

More info

Specifications:

  • Computer interface: USB 2.0 High Speed
  • USB Power Requirement: 500 mA, 5.0 Volts
  • USB Audio Channels: Ten Record and Ten Playback
  • External Power Supply: 7.5 Volts (included)
  • Converters: 24-bit / 48 kHz or 96 kHz sample rate switchable, DAC Dynamic Range: 104.5 dB, A-weighted, ADC Dynamic Range: 103 dB, A-weighted, Dynamic Range: 101 dB A-weighted analog in to analog out
  • Frequency Response: -0.6 dB @ 20 Hz, -0.03 dB @ 20 kHz
  • THD+N: 0.007% at 1 kHz, 20 Hz to 20 kHz BW
  • Inputs: Inputs 1-4 individually Phono / Line switchable
  • Aux Input: Line-Level only
  • Gain: Unity
  • Maximum Input / Output: 3 Vrms @ 1 kHz
  • Switched Phono Input Max: 70 mV rms @ 1 kHz
  • SL 4 Unit Size: 7.25" x 5" x 1.7" (18.4 x 12.6 x 4.3 cm)
  • Shipping Size: 14" x 14" x 4" (36 x 36 x 10 cm) [tentative]
  • Weight: 6 pounds (3 kg) [tentative]

Scratch Live System Requirements

  • Available 2.0 USB port.
  • 1024 x 768 screen resolution.
  • 5400 RPM hard drive. 7200 RPM for high-resolution audio playback.
  • 2 GB RAM (a large library will like more RAM).
  • Mac
    • Intel 1.83 GHz Core Duo or better.
    • OSX 10.5.8 or higher.
  • WINDOWS
    • Intel processor, 2.2 GHz Core Duo or better.
    • Windows XP with Service Pack 3 or higher.
    • Windows Vista with Service Pack 2 or higher.
    • Windows 7, recommended over Vista.
