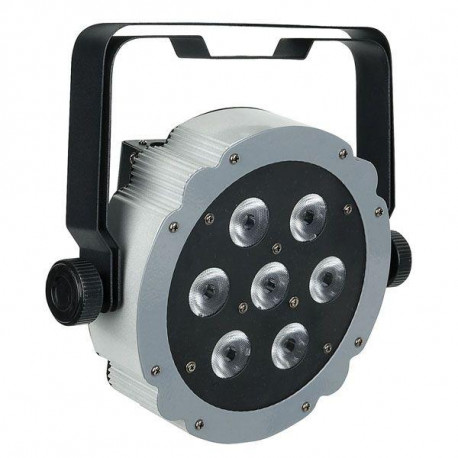

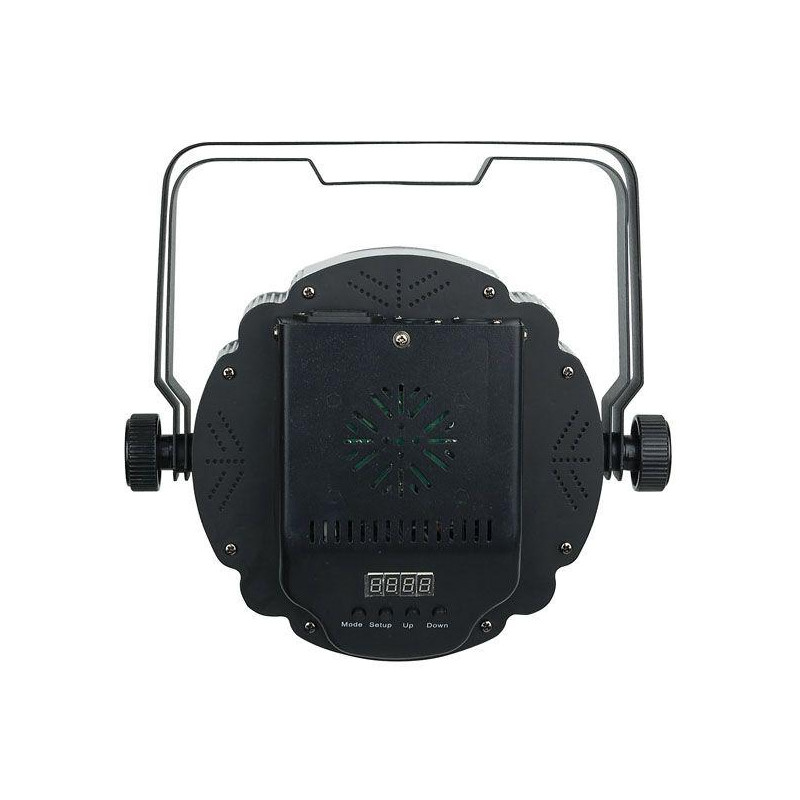

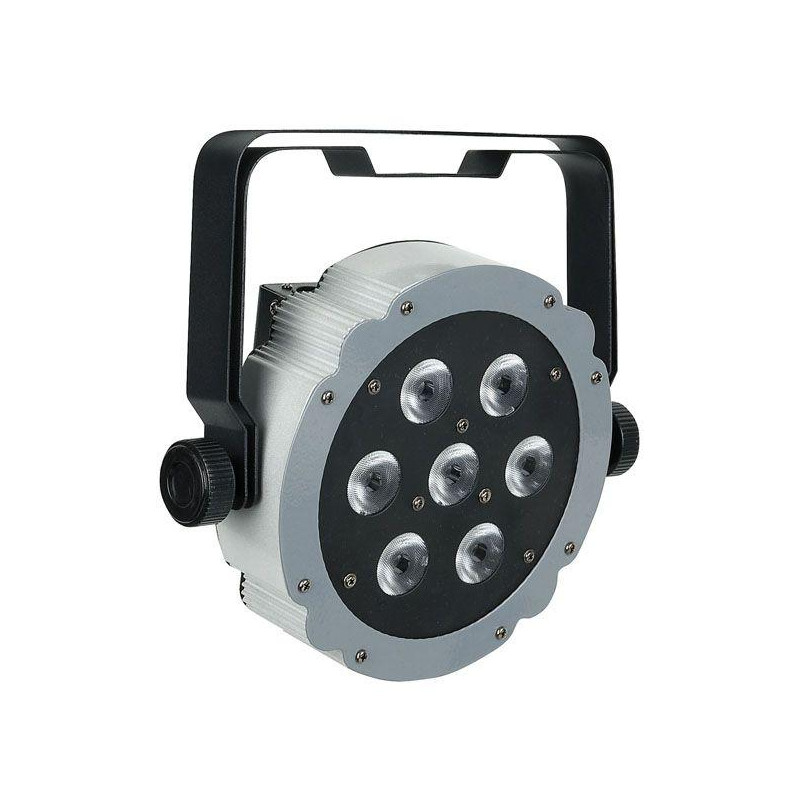

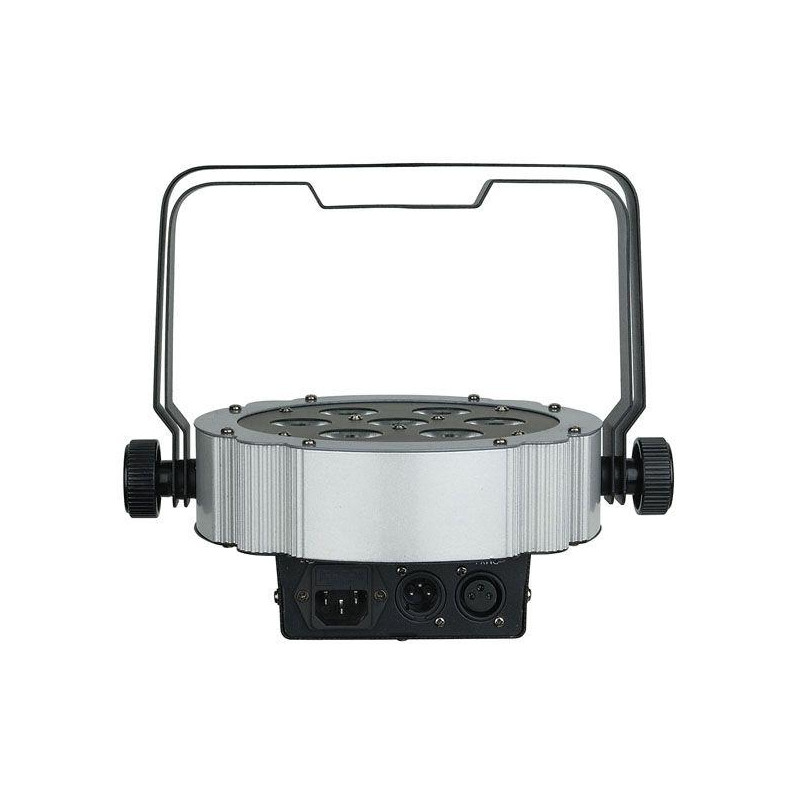

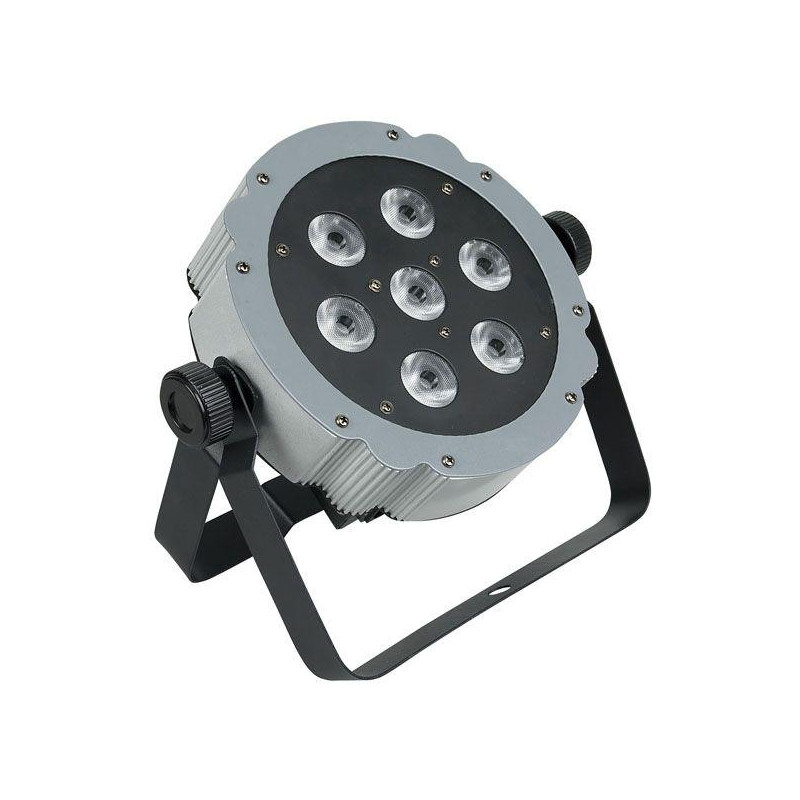

The Compact Par 7 Tri is an unique designed and compact but powerful parcan fixture. It offers full 3-in-1 RGB color-mixing ensuring vivid colors with a perfect color-mix. Due to its compact design it saves a lot of space for transportation and also in use. The Compact Par 7 has full digital addressing and offers both DMX control and sound to light function. For small applications the Compact Par 7 Tri has also a Master Slave modus.
Output
- Lumens: 1540
- Lux @2m: 2230
- Max Distance: 20m
Light Source
- LED System: 7 x 3-in-1 LED
- Drive Current: 350mA
- Refresh rate: 3.9KHz
Electrical
- Power Supply: 100-240V AC
- Power Consumption: 28W
Control
- Control Mode: DMX512
- DMX channels: 3,4,8
Optical system
- Dimmer: 0-100%
- Strobe: 0-20Hz
- Beam Angle: 40°
Physical
- Dimensions: 290 x 275 x 115 mm
- Weight: 2,6 kg
- Housing: Aluminum and iron
- Color: Dark grey and Black
- Power Connectors: IEC
- Data Connectors: XLR 3pole
- Cooling: Aluminum heat sink
Safety
- Operation temperature -20~40°C
