More info

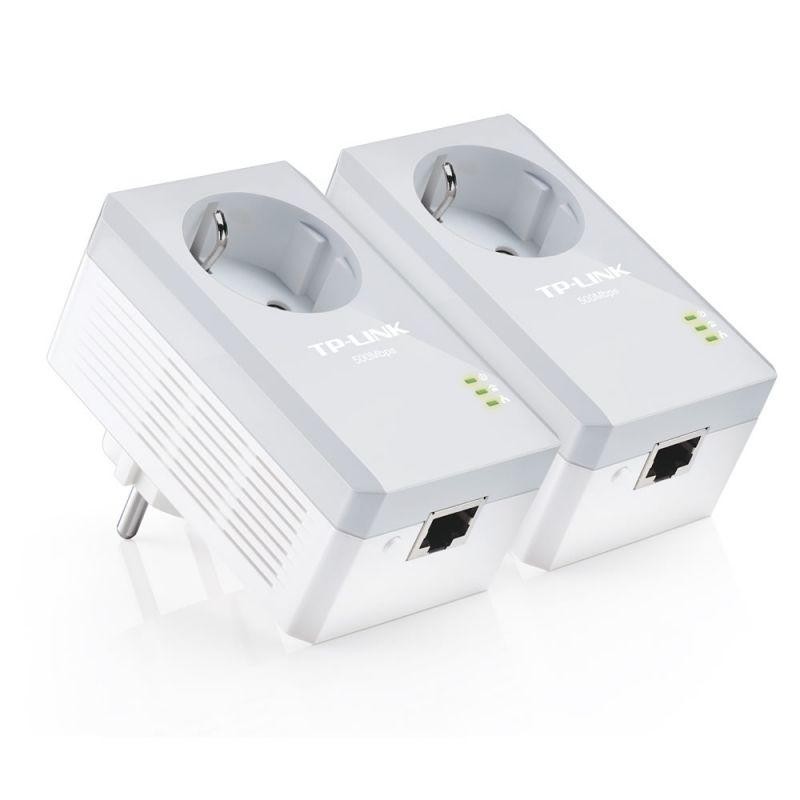

The TL-PA4010PKIT takes advantage of your home's electrical installation to transmit high-speed data along with electrical power, without any additional wiring or drilling. No configuration required, just plug your adapter into a socket and you have a network infrastructure instantly. Plus, thanks to its built-in plug, you'll be sure not to waste any electrical outlets. With speeds of up to 500Mbps and 300 meters of range over domestic electrical wiring, the TL-PA4010PKIT is a great choice for building a simple multimedia entertainment network.
- Compliant with HomePlug AV standard, high speed data transfer rate up to 500Mbps, ideal for HD video streaming and network gaming
- Built-in plug for powering other electrical appliances
- Current filter for better performance of Powerline communication
- No need for new cables, use existing electrical installation
- Range of up to 300 meters through the electrical circuit of the house, which provides better performance when crossing walls or ceilings
- Plug and Play, no new cables or configuration required
- Patented energy saving odo that automatically reduces consumption by up to 85%
- 128-bit AES encryption to secure your network - just push a button on paired devices
- Integrated QoS function ensures the quality of the most bandwidth sensitive applications such as voice, video and online games
- Support for multicast IP transmissions managed by IGMP, IPTV streaming optimization
specs
techniques
- Standards and protocols: HomePlug AV, IEEE802.3, IEEE802.3u
- Interfaces: 1 * 10 / 100Mbps Ethernet Port, Power Socket
- Plug Type: EU, UK, FR
- LED indicator: Power, Powerline, Ethernet
- Buttons: Pairing Button
- Dimensions (WXDXH): 3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm)
- Power consumption: Maximum: 5.0W
- Standard mode: 4.6W
- Standby mode: 0.72W
- Range: 300 meters inside the house
SOFTWARE CHARACTERISTICS
- Encryption: AES 128-bit encryption
- Modulation technology: OFDM
OTHERS
- Certifications: CE, FCC, RoHS

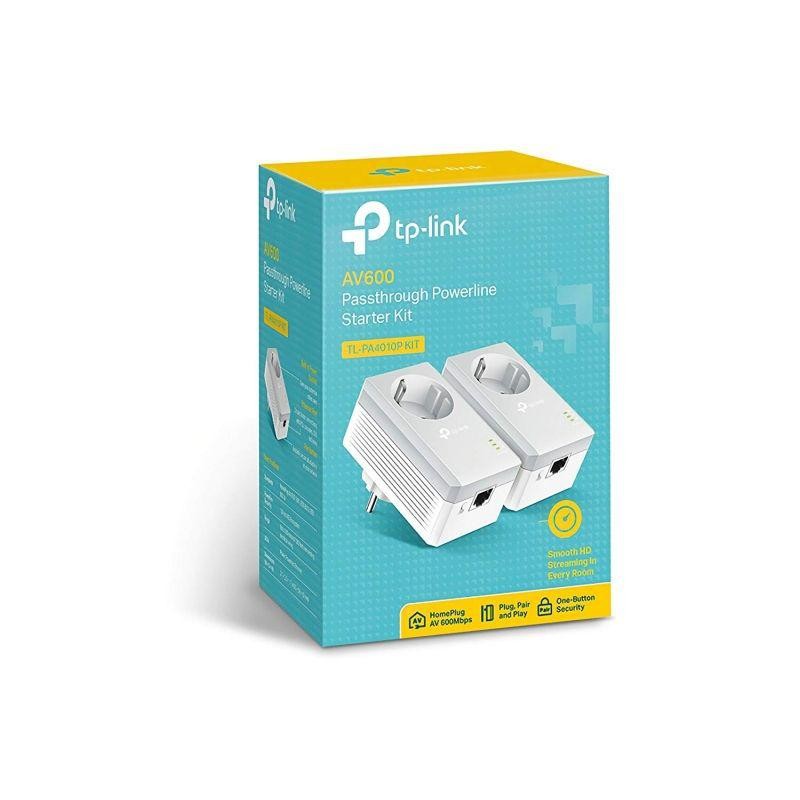

- Package Contents: 2 x Powerline AV500 Adapters with Built-in Plug
- TL-PA4010P
- 2 meter RJ-45 Ethernet cable
- Quick Installation Guide
- Utilities CD
- System requirements: Windows 8/7 / Vista / XP / 2000, Mac OS, Linux *
- Environmental factors: Operating temperature: 0? ~ 40? (32? ~ 104?)
- Storage temperature: -40? ~ 70? (-40? ~ 158?)
- Operating humidity: 10% ~ 90% non-condensing
- Storage humidity: 5% ~ 90% non-condensing
