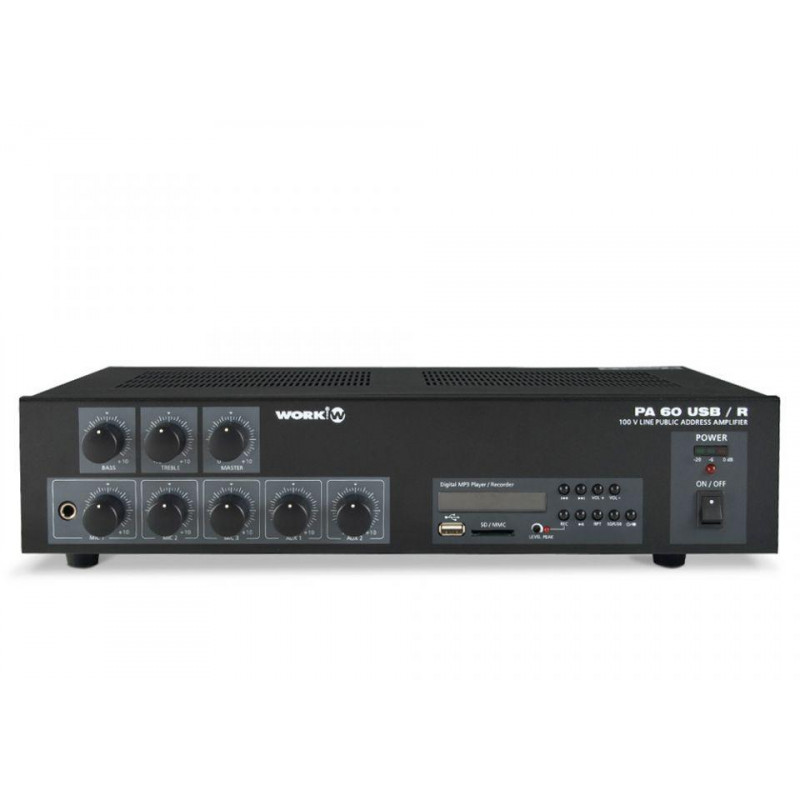

Work - PA 60 USB/R

PA 60 USB/R

60W -Line 25/70/100V USB/MP3 Interface

Discontinued

More info

Features:

  • Installed sound power amplifier + 5 input mixer.

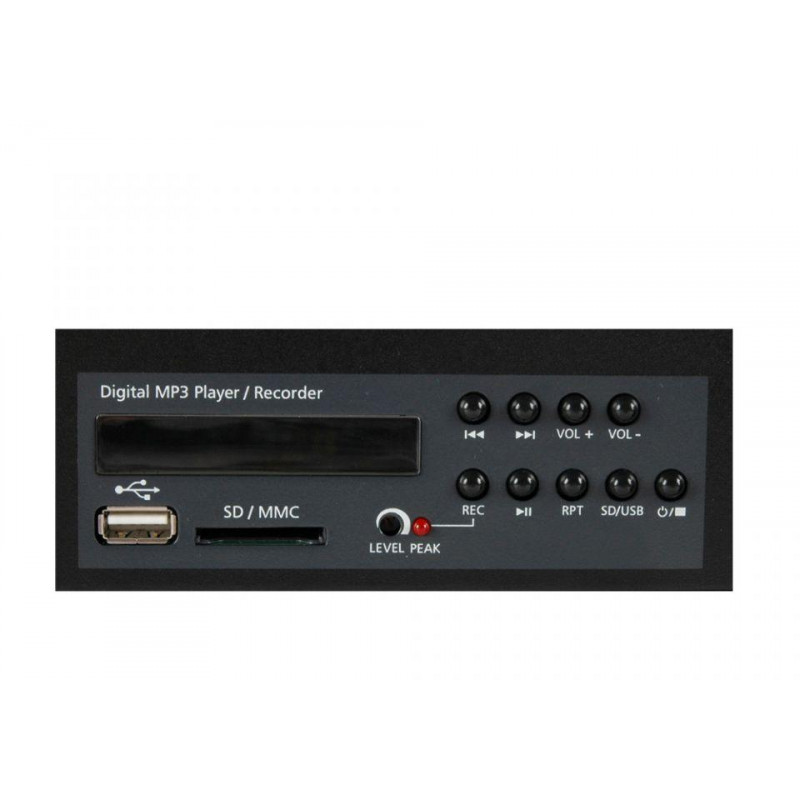

  • Solid state audio player/recorder (USB/SD) with standard formats (MP3, etc.).
  • Supports storage devices with up to 32 GB.
  • 2 AUX inputs.
  • 3 Mic inputs.
  • Mic 1 input with priority.
  • Mixer with independent control of volume, Master control and high/bass tone.
  • Pre-out function.
  • Suitable with low impedance speakers (8 ohm) and high voltage line (25/70/100 V).
  • Chime On/Off switch.
  • Tel/Emer connection for emergency announcements.
  • Terminals for emergency supply (DC 24 V).

Technical data:

  • Audio inputs: 3 Mic, 2 aux.
  • Mic (impedance/sensitivity): 250 ohm / 1 mV bal.
  • Aux (impedance/sensitivity): 47 kohm / 200 mV.
  • Tape output: 4.7 k? / 350 mV.
  • Pre-out: 600 ? / 1 V.
  • Outputs: 8 ? / 25 V / 70 V / 100 V.
  • Output power: 60 W.
  • Frequency response: 50 Hz - 20 kHz +/- 3 dB.
  • EQ controls: Bass: +/- 10 dB. / Treble: +/- 10 dB
  • S/N ratio: 75 dB (Line) / 60 dB (Line).
  • Main supply: AC 115/230 V, 50/60 Hz. / DC 24 V.
  • Consumption: 170 W.
  • Dimensions (WxHxD): 483 x 88 x 260 mm.
  • Weight: 8 kg.
