ZB - 12V 36W MAGIC RGB View larger

Z-B - 12V 36W MAGIC RGB

12V 36W MAGIC RGB

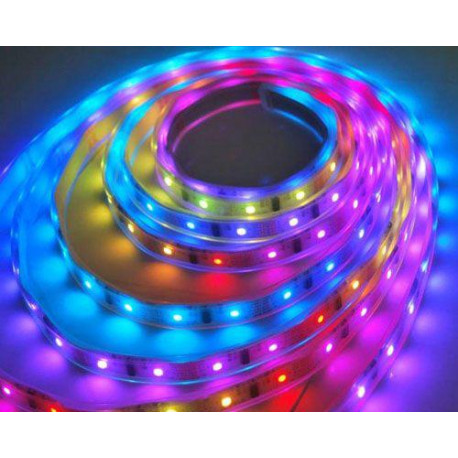

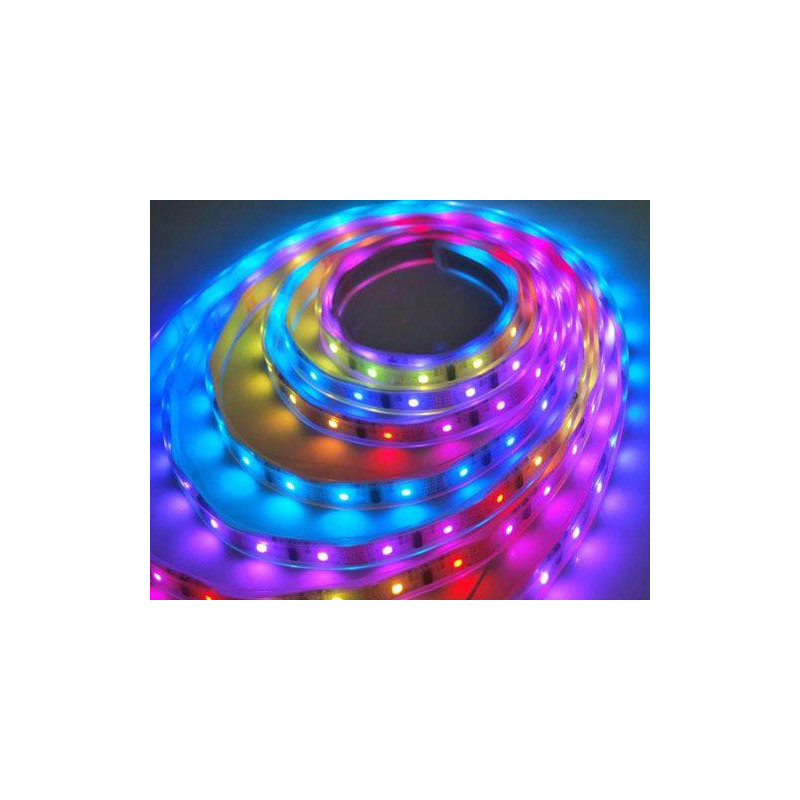

Magic LED Strip 5m RGB. 12v. 36w (7.2 W per meter) IP68

71,90 €

Add to wishlist

In Stock

More info

Specifications:

  • LED color: RGB
  • LED type: SMD5050 (9-10lm/led)
  • LED quantity: 30pcs per meter
  • PCB size: 5000*10mm
  • PCB color: white
  • Working Voltage: DC12V
  • Wattage: 7.2W/m
  • LED view angle(2?1/2):120°
  • Package:5meters/reel
  • Operating Temperature:-40˜+60°c
  • Storage Temperature:above -40



Cut the strip:
The LED strip can be cut at marked with sharp scissors. The remaining parts can still be used, just with a new cable soldarle connector system.
Divide the strips only at the points marked.

Expansion of strips:
For long lasting life LED strips are recommended not to exceed 7,5 m if the strips are connected in a row. In case of exceeding this limit is advisable to connect the strips with a new parallel cable to the transformer or power amplifiers use a new transformer.

Reminder solder splice or make new strips:
The strips contain marked lines to be joined by welding. Be careful that the welder has a very brief contact with the strip to weld. The excessive heat damages the driver and therefore the strip. Damage caused by improper welding are not covered by warranty.

Important warning warranty:
Check before installing the strip that works correctly, because once cut the warranty expires.
