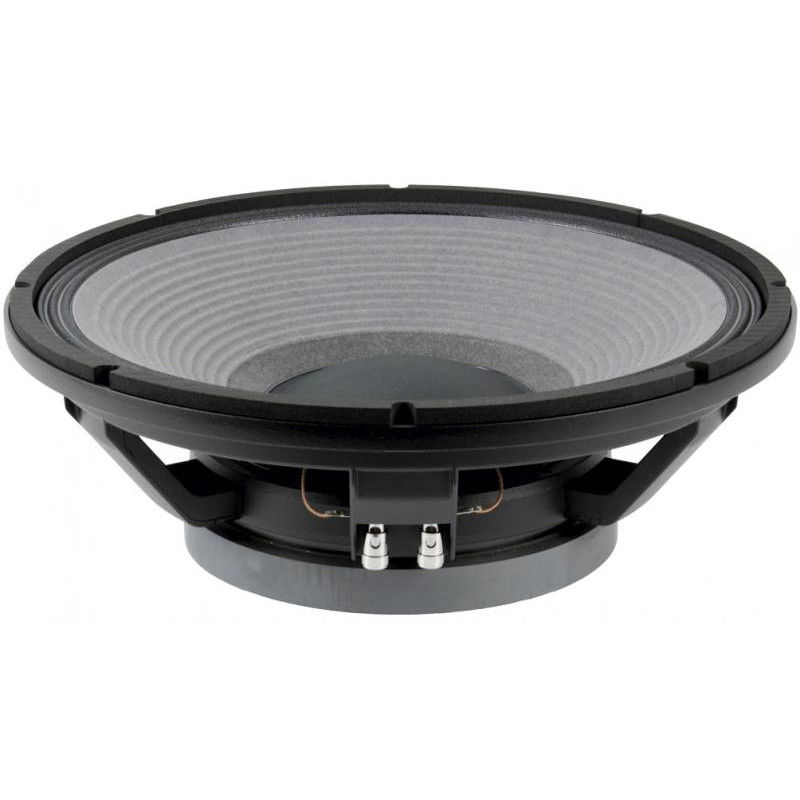

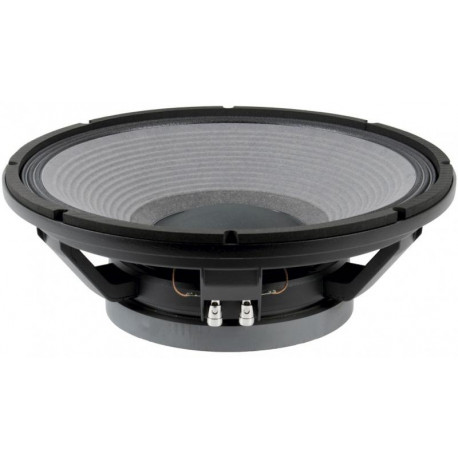

Beyma - 5M15LX60V28
Replacement membrane for SPEAKER 15...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
700 W AES
Nominal diameter
380 mm 15 in
Sensitivity
98 dB 1 W @ 1 m
Minimum impedance
7.2 ohm
Frequency range
30-1500 Hz
Program power
1400 W
Recommended box volume
60/150 l 2.12 / 5.3 ft³
Coil Diameter
100 mm 4 in
BL factor
21.1 N / A
Moving mass
0.147 kg
Winding height
20 mm
Air gap height
10 mm
Maximum displacement pp
58 mm
Thiele & Small parameters
Fs
42 Hz
Re
5.1 ohm
Qms
21.23
What is it
0.45
Qts
0.44
You go
105.53 l
Cms
92.4 µm / N
Rms
1.9 kg / s
Efficiency %
1.67
Sd
0.091 m²
Xmax
9 mm
you
812 cm³
Le @ 1 kHz
2.1 mH
Construction details
Net weight
10.2 kg 22.49 lb
Total weight
13.30 kg 29.3 lb
Magnet
Ferrite
