DJ CONTROLLER The best KAOSS is here!

With its innovative XY pad and signature, original effects, the acclaimed KAOSS series has reshaped the musical landscape, rewriting the rules of live performance and musical innovation in its various iterations.

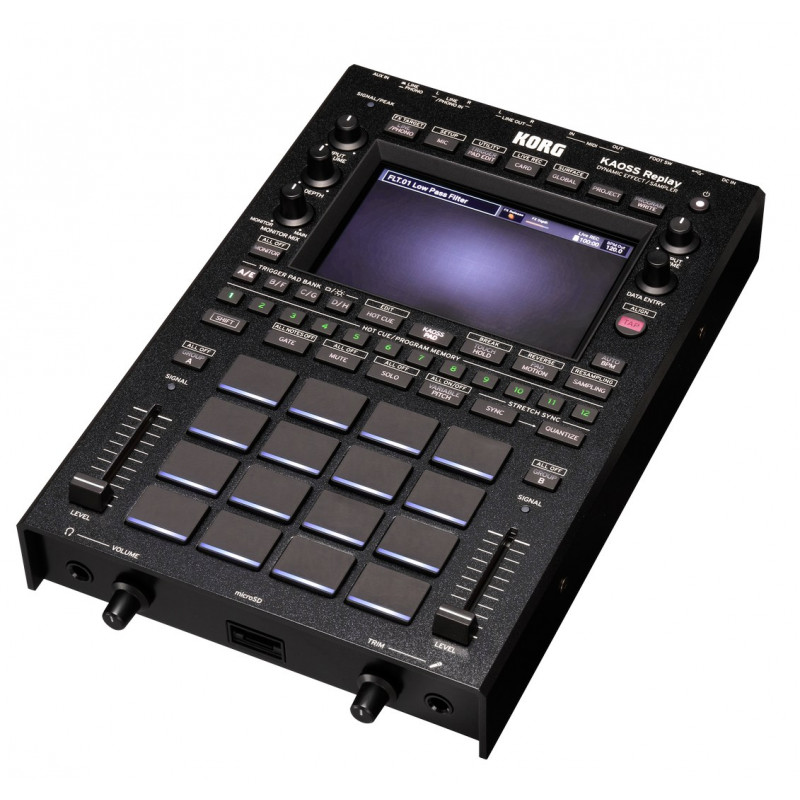

KAOSS Replay is a standalone performance tool that reshapes the KAOSS legacy, serving as an all-in-one solution for musicians, performers and producers. Featuring unrivaled KAOSS pads and effects, expanded sample playback and sampling capabilities, and intuitive, precise DJ controls. In a self-contained portable unit, KAOSS Replay facilitates electrifying KAOSS performances on the go, eliminating the need for additional equipment.

KAOSS Replay opens up a new realm of musical creativity and unlimited performance possibilities.

Specifications

Kaoss Pad Effect
128 types

Exclusive effect for microphone
TONE, DELAY, REVERB

Maximum number of projects
100

Trigger pad
16 (supports speed) × eight banks

hot cue
Max. 12 (per trigger pad)

Number of simultaneous plays
16

Audio specifications
Linear PCM (48 kHz/16 bit)

Recording Features
Sampling, resampling
* Max. 30 min.
LIVE RECORDING
* Max. 100 min.

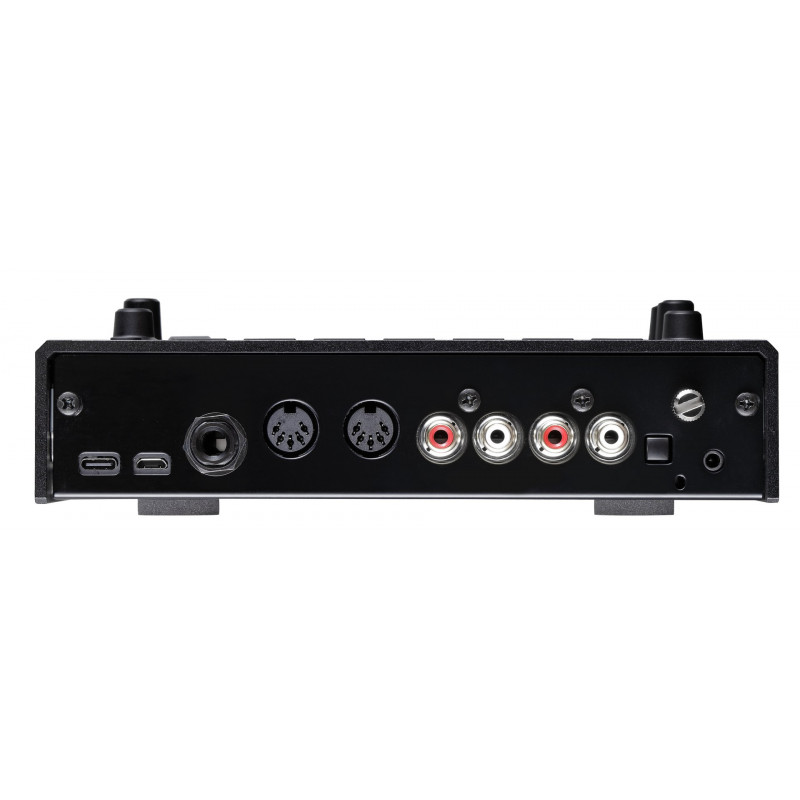

Audio input
LINE/PHONE INPUT Jack: RCA pin jack (Selects LINE or PHONE.)
PHONO GAIN (LO/HI) switch
MIC IN Jack: Standard jack (φ 6.3 mm, TS monaural)
* Exclusive for dynamic microphone
AUX IN jack: stereo mini jack (φ 3.5 mm)
* Mix directly with LINE OUTPUT.

Audio output
LINE OUT Jack: RCA Jack
HEADPHONE jack: standard stereo phone jack (φ 6.3 mm)

Controller input
SW STANDING jack: Standard jack jack (φ 6.3 mm, TS)
* Connect the optional PS-1 or PS-3.

USB Jack
microB (MIDI, Audio (IN x 2ch, OUT x 34ch (48kHz/16bit, You need to install KORG KaossReplay audio driver in Windows environment.))

MIDI Jack
IN/OUT (DIN 5pin) and MIDI function are exclusive to the USB jack (IN x 1 port, OUT x 1 port).

External storage
microSD card, microSDHC card (32GB max.)
*Class10 or higher, UHS-I (U1) is recommended (However, this does not guarantee operation with all cards.)

Product dimensions
185 (W) x 284 (D) x 56 (H) mm

Product weight
2.0kg
*Does not include microSD card or AC Adapter.

Power supply
DC 5V/3A

Accessories
User Manual (Quick Start Guide)
AC Adapter
USB Cable (Type A to microB, 1 m)
microSDHC card (inserted into the microSD card slot on the main body at the time of shipment).
