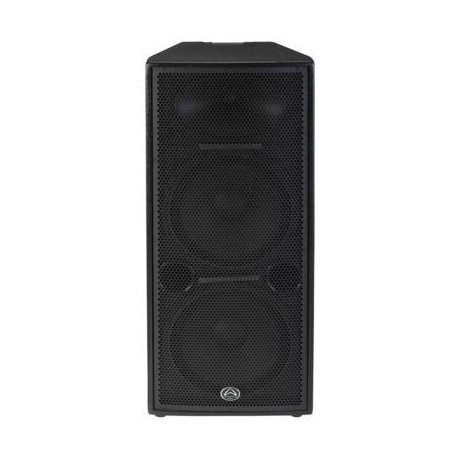

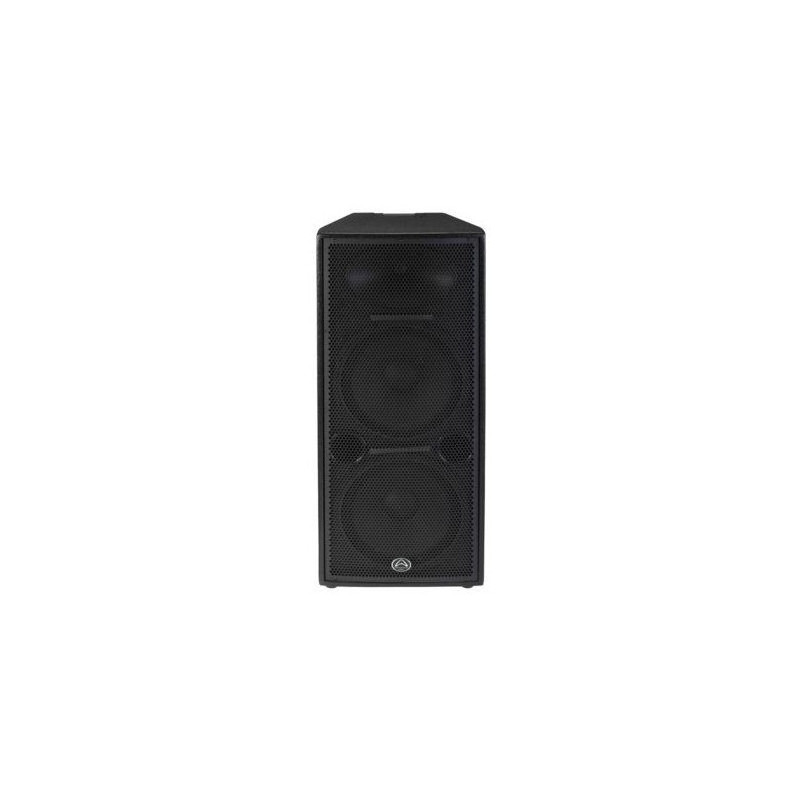

Wharfedale - DELTA X215
Speaker with 2 woofers 15". Tweeter...
-
Bags - TROMBÓN
TENOR L METALIC BLUE TROMBONE BAGS CASE
View larger
More info
Specifications:
| POWER HANDLING | |
| CONTINUOUS | 1000W |
| PEAK | 4000W |
| PROGRAMME | 2000W |
| MAX SPL (CALCULATED) | |
| DB SPL @ PEAK RATED POWER | 137dB |
| NOMINAL COVERAGE | |
| (H @1KHZ) | 90° |
| (V @1KHZ) | 45° |
| RECOMMENDED HIGH PASS FREQUENCY | 1.5KHz / 1.8KHz |
| RECOMMENDED HIGH PASS SLOPE | 18dB/Oct |
| CROSSOVER FREQUENCY | 1.8KHz |
| BI-AMP MODE SWITCH | Yes |
| LF SIZE | 2x 404mm / 15" |
| LF POWER (CONTINUOUS RMS) | 500w |
| LF SENSITIVITY (FREE FIELD 1W @ 1M) | 98dB |
| LF VOICE COIL | 76.2mm / 3" |
| LF CONE MATERIAL | Paper |
| LF VOICE COIL MATERIAL | Copper |
| LF VOICE COIL FORMER MATERIAL | Fibre Glass |
| LF BASKET MATERIAL | Aluminium |
| LF BASKET TYPE | Die-Cast |
| LF MAGNET STRUCTURE MASS | 2.467Kg / 5.412lbs |
| LF MAGNET STRUCTURE MATERIAL | Ferrite |
| HF SIZE | 50.8mm / 2" Titanium |
| HF POWER (CONTINUOUS RMS) | 50W |
| HF SENSITIVITY (FREE FIELD 1W @ 1M) | 104dB |
| HF VOICE COIL | 50.8mm / 2" |
| HF WAVEGUIDE TYPE | Elliptical |
| HF WAVEGUIDE EXIT | 35.6mm / 1.4" |
| HF DIAPHRAGM MATERIAL | Titanium |
| HF VOICE COIL FORMER MATERIAL | Kapton |
| HF MAGNET STRUCTURE MASS | 1.197Kg / 2.63lbs |
| HF MAGNET STRUCTURE MATERIAL | Ferrite |
| HF PROTECTION | SK3 |
| ENCLOSURE MATERIAL & THICKNESS | 15mm Plywood |
| ENCLOSURE FINISH | RHINO ROCK? |
| GRILLE MATERIAL & FINISH | 1.5mm Steel |
| COLOUR | Black |
| HANDLES | 2 on Sides 1 On Back |
| INPUT CONNECTOR TYPE | 2x Speakon |
| NET WEIGHT | 52.9Kg/ 116.6lbs |
| GROSS WEIGHT | 59.0Kg/ 130.0lbs |
| DIMENSIONS (UNPACKED) | |
| H | 1135mm / 44.7" |
| W FRONT/REAR | 488/299.6mm / 19.2/11.8" |
| D | 450mm / 17.7" |
| DIMENSIONS (PACKED) | |
| H | 1218mm / 48.0" |
| W FRONT/REAR | 558mm / 22.0" |
| D | 522mm / 20.6" |
| CBM | 0.355 |
| NOMINAL IMPEDANCE (OHMS) | 4 ohms |
| GENERAL PARAMETERS | |
| SYSTEM TYPE | Quasi 3-Way |
| FREQUENCY RESPONSE (+/- 3DB) | 45-20KHz |
| SENSITIVITY | |
| DB (1W @ 1M) | 101dB |
Reviews
No customer comments for the moment.
